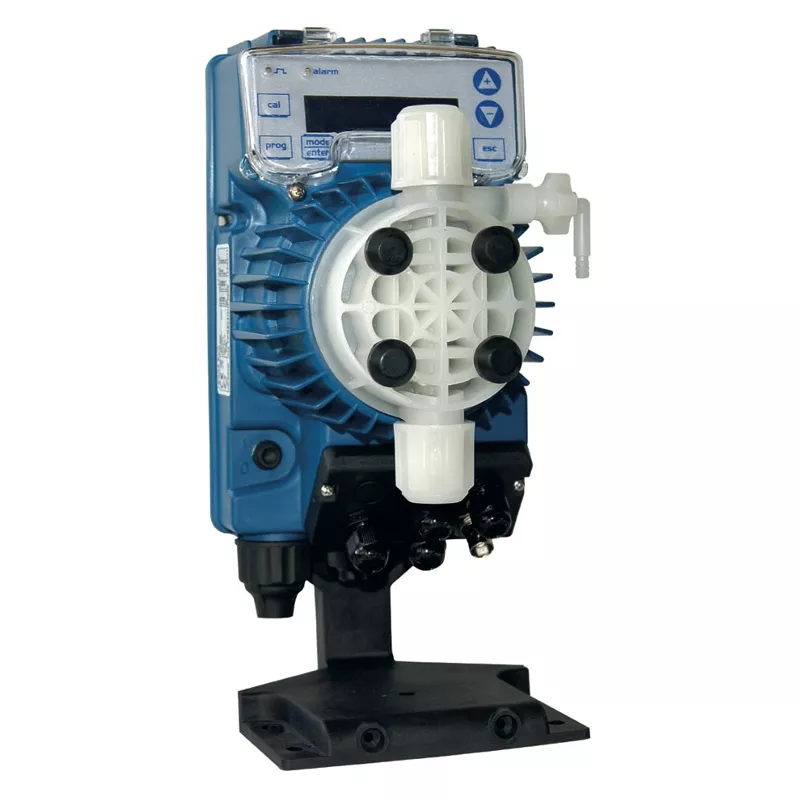

Metering pump Seko Tekna Evo TPR 603 (PVDF-T kit)
ref: 05BDTPR603NHP
- Dosing pump Tekna Evo TPR 603
- Manufacturer: Seko
- Code: TPR603NHP0000
- With pH or ORP control (cell not included)

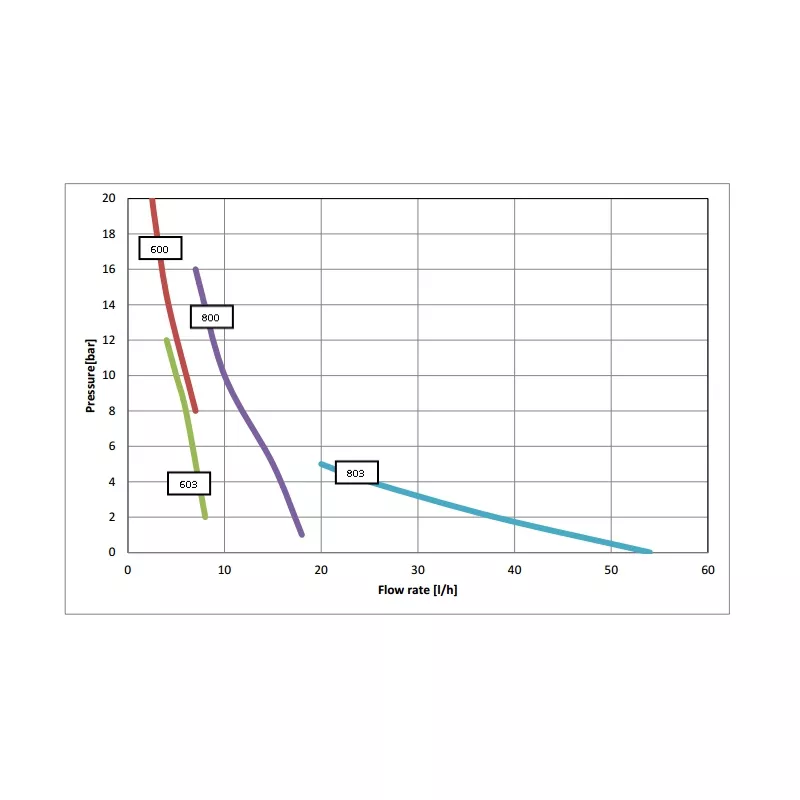

- Constant flow rate up to 8 l/h ( see table)
- Analogue control with potentiometer on the front panel
- Head (body and connection) in PVDF
- PTFE membrane
- Installation kit in PVDF-T (injection valve, foot filter and support)
- Viton seals
€375.00
Free shipping
Bought together Usually
Actual product
 | €74.90 | |
 | €87.89 | |
 | PH-Minoriser CTX 15 in 20 litres €29.90 |
Items: 1
Total price: €375.00
Technical characteristics
Dosing pump Seko
Metering pumps are a type of pump whose purpose is to inject a liquid (in swimming pools it is usually to inject a reducing agent, pH increaser or liquid chlorine) into a fluid line. There are two types of dosing pumps: peristaltic pumps and diaphragm pumps. There are also models that allow you to control the parameter of the product you are dosing, i.e. control the ph level or control the chlorine level
Contents of the box
- Metering pump Seko TPR 603
- Standard power supply 100-240Vac, 50/60Hz.
- Installation kit.
- Cell, calibration standard and cell holder not included
Technical characteristics of the TEKNA EVO TPR 603 metering pump.
- Digital control
- Constant flow rate up to 8 l/h. See table.
- Housing made of glass-fibre reinforced PP (polypropylene), IP65 protection.
- Head (body and connection) in PVDF (polyvinylidenefluoride)
- PTFE (Teflon) diaphragm
- PVDF-T installation kit (injection valve, foot filter and support)
- PVC suction pipe.
- PE delivery pipe.
- Viton seals (PTFE)
Data Sheet
- Pump type
- Electromagnetic
- Allows level control
- Yes
- Pump control
- Digital
- Automatic control of
- Ph or Chlorine (Redox) control
