Astrapool Aster D.600 Filter with Side Selector Valve
ref: 06FI00499 sku: 00499
- Astralpool swimming pool filter Aster series
- Code 00499
- Diameter 600 mm
- Made of polyester resin and fibreglass

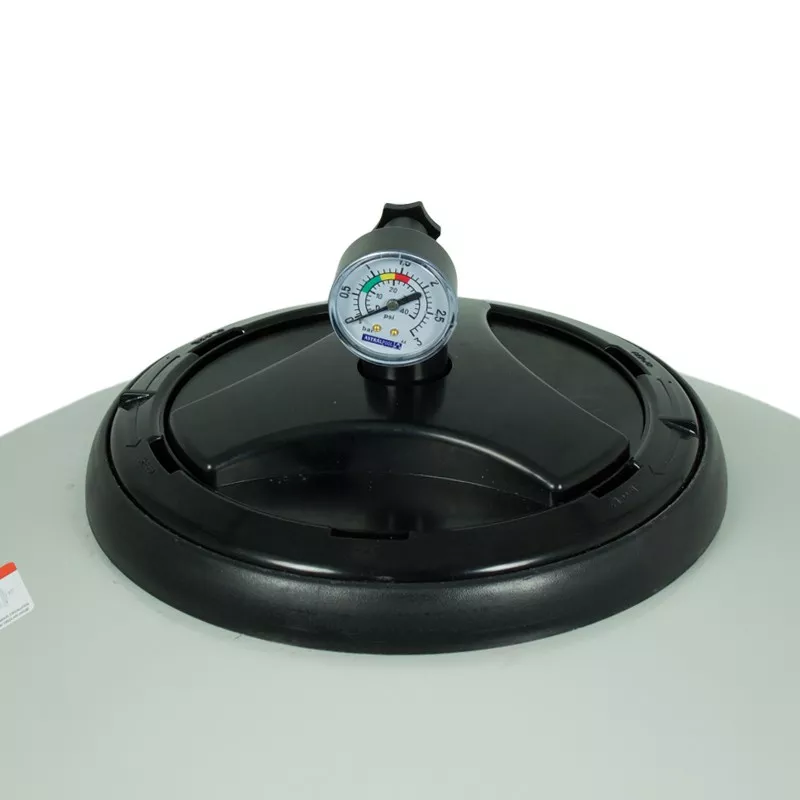

- Quick-opening top cover
- INCLUDING 6-WAY SELECTOR VALVE 1" 1/2.
- With pressure gauge, manual air and water purge
€631.00
Free shipping
Technical characteristics
what type of pool is the Astralpool Aster D.600 recommended for?
Recommended for private pools up to 80 m3.
General characteristics of Astralpool Aster Filters
- Laminated sand filters, in polyester resin and fibreglass, ivory colour.
- It stands out for the use of 1" diameter collectors and diffuser in unalterable plastic material PVC and PP.
- Equipped with pressure gauge, manual air vent and manual water drain.
- Six-way side selector valve for filtering, washing, rinsing, recirculation, emptying and shut-off operations.
- Polypropylene base, except for 900 mm diameter, which is made of polyester resin and fibreglass.
- Maximum filtration speed: 50m3/h/m2.
- Maximum working pressure: 2.5 kg/cm2.
- Screwless lid with quick opening and closing. Patented system.
Delivery contents:
- Aster filter
- 1 1/2" selector valve
- Pressure gauge, manual air vent and manual water drain kit
Filter dimensions Astralpool Aster with Side Selector Valve
 | | | |  | | | |
| ASTER 350 | ASTER 450 | ASTER 500 | ASTER 600 | ASTER 650 | ASTER 750 | ASTER 900 | |
| D (mm) | 350 | 450 | 500 | 600 | 650 | 750 | 900 |
| H (mm) | 780 | 795 | 770 | 850 | 880 | 945 | 1050 |
| M (mm) | 420 | 430 | 415 | 455 | 480 | 555 | 660 |
| N (mm) | 295 | 305 | 290 | 330 | 355 | 325 | 390 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" 1/2 |
| Sand load (kg) | 50 | 70 | 95 | 125 | 200 | 240 | 400 |
| Flow rate (m3/h) | 5 | 8 | 9 | 14 | 15 | 21 | 30 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 12,5 | 15,5 | 18 | 21 | 24 | 30 | 51 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years 2 years | 2 years 2 years |
Data Sheet
- Recommended pool size
- 50-80 m3
- Filter diameter
- 600 mm
- For pumps
- 0.75 HP - 1 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 100 - 150 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
