Filtration Pack Star Plus 600 + Nox 100 18M
ref: 06FI5747238773

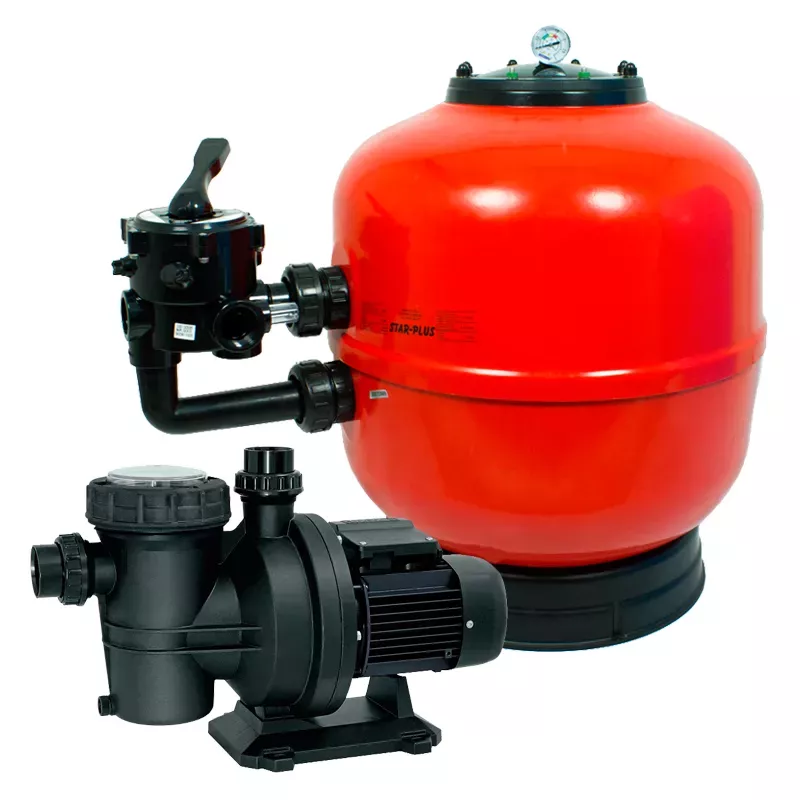

The filtration pack includes the following:
- Filter Astralpool Star Plus
diameter: Ø600 mm - Selector valve Astralpool 6 way valve 1" 1/2 with links
- Pump ESPA Jardino Pool Nox 100 18M
power: 1 hp single phase
€599.00
Free shipping
Technical characteristics
what is leakage?
Filtration is one of the most important tasks when cleaning and disinfecting our pool.
Within the filtration system, the most important element is the filter, as it is responsible for retaining the dirt particles in its filter bed, whether sand or glass, as the water circulates through it, to subsequently return the water to the pool crystal clear and suitable for swimming.
When selecting the ideal filter for our pool, several aspects must be taken into account, such as the size of the pool and the power of the pump that will accompany the filter.
In this way, we will be able to optimise the performance of our filtration system to the maximum and enjoy crystal clear water that is suitable for swimming

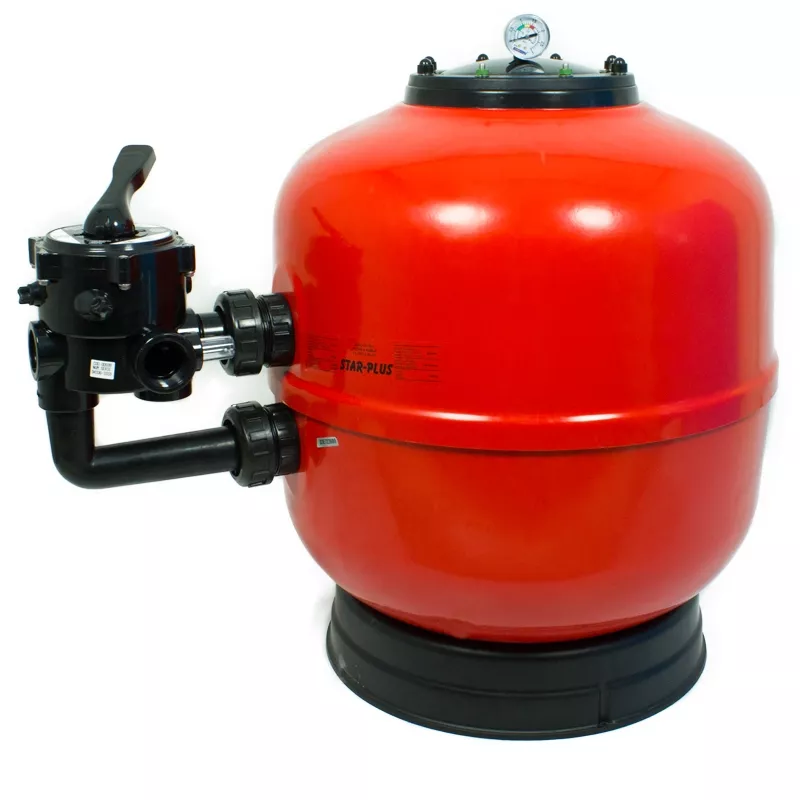

Star Plus 600 Filter
- Recommended for pools up to 80 m3.
- Equipped with pressure gauge and air-water drain.
- Screw lid, with new design.
- Includes 6-way selector valve 1" 1/2.
- Fitted with manifold and diffuser in inalterable plastic material.
- Filter made of reinforced polyester and fibreglass.
- Excellent satin red finish.
- Maximum flow rate: 15 m3/h.
- Filtration velocity: 50 m3/h.
- Maximum working pressure: 2.5 kg/cm2.
- Sand load: 125 kg.
- Glass load: 112,5 kg.
Star Plus range comparison
 | | | | | |
| STAR PLUS 450 | STAR PLUS 500 | STAR PLUS 600 | STAR PLUS 750 | STAR PLUS 900 | |
| Diameter (mm) | 450 | 500 | 600 | 750 | 900 |
| H (mm) | 765 | 760 | 805 | 940 | 1085 |
| M (mm) | 430 | 415 | 455 | 555 | 620 |
| N (mm) | 305 | 290 | 330 | 325 | 390 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 | 2" | 2" |
| Flow rate (m3/h) | 8 | 9,5 | 15 | 22 | 32 |
| Pool volume (m3) | 64 | 72 | 112 | 168 | 248 |
| Sand load(kg) | 70 | 85 | 125 | 300 | 430 |
| Operating pressure (bar) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 14 | 16 | 21 | 38 | 55 |
| WARRANTY | 3 years | 3 years | 3 years | 3 years | 3 years |
Pump Astralpool Victoria Plus 1 HP
MAIN CHARACTERISTICS
- Power: 1 hp single phase
- Manufacturer: Astralpool
- Code: 38773
- Maximum flow rate: 16000 l/h
- Large capacity pre-filter (4,7 litres)
- All parts of the pump are made of technical plastics, thus avoiding any corrosion problem
- The diffuser body is made of Luranyl® and the impeller is made of Noryl®' with glass fibre reinforcement, giving them the highest level of resistance and finishing
- Mechanical seal in AISI-316 stainless steel and silicon carbide
- Class F insulation and motor protection IP-55
- Bearings protected against the effects of humidity
- Self-priming up to 2 metres
- Stainless steel pump body hardware
HIGH PERFORMANCE, LOW NOISE LEVEL AND HIGH CAPACITY FILTER
The Victoria Plus pool pump is a high-performance pump whose construction, using technical plastics and top quality stainless steel, guarantees its high performance.
All metal parts in contact with the water are made of AISI-316 stainless steel to ensure the longest possible service life.
On the other hand, the IP-55 protection, which prevents solid particles and liquids from entering inside the motor, and the class F insulation of the motor, make it possible to install the Victoria Plus range in environments with high levels of humidity and high temperatures.
Its pre-filter with a capacity of 4.7 litres allows the retention of solid elements, thus preventing them from entering the hydraulic part of the pump.
New pre-filter cover
Victoria Plus pumps have a new crosshead pre-filter cover that is fully compatible with Astral Sprint and Victoria pumps.
New generation nut
Easy to operate pre-filter cover-nut, using the opening and closing key incorporated in the pump.
Improved pump support
The feet of the Victoria and Sprint range have been combined to improve pump and motor support when required.
Data Sheet
- Type of current
- Single-phase 220V
- For Filters
- 600mm-650mm
- Recommended pool size
- 50-80 m3
- Filter diameter
- 600 mm
- For pumps
- 1 HP - 1.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 100 - 150 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
- Flow rate m3/h (at 10 mca)
- 16 - 18 m3/h
- Variable Speed
- No
- Power (hp)
- 1 CV
