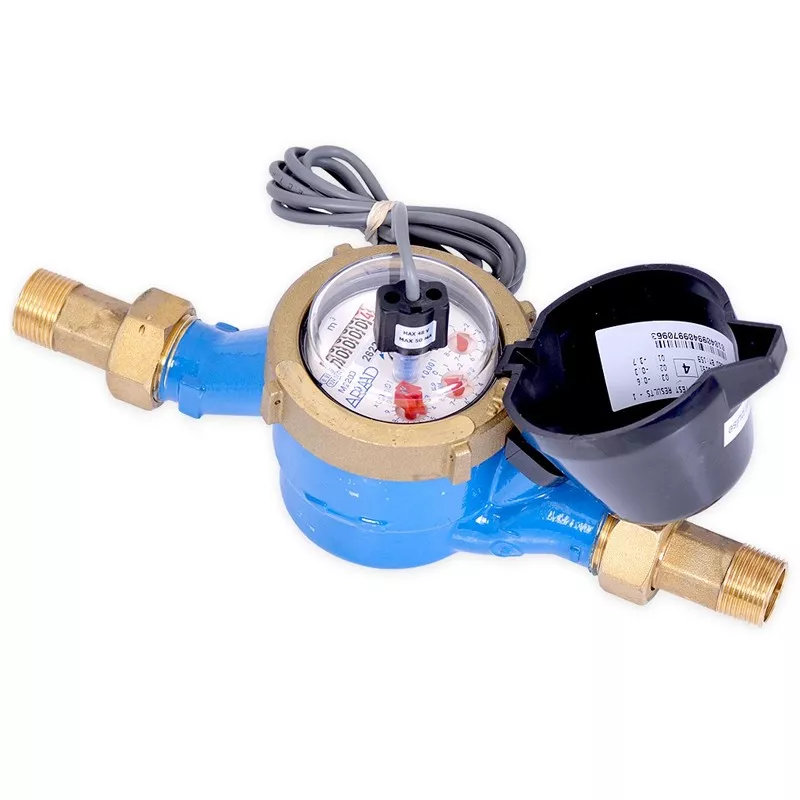

Pulse emitter meter 2" 450 l/h
ref: 09PV25007
- Impulse emitter counter.
- 10 liter = 1 impulse.
- Ideal to control the quantity of product that we dose.
- Section of 2".
- Minimum nominal flow rate: 450 l/h.
If you are looking for meters 1 liter = 1 impulse, please contact us
€349.00
Free shipping
Technical characteristics
General characteristics of the impulse counter.
Impulse emitter counter ideal to control the quantity of product that we dose in a volume of water.
what is a pulse emitter counter used for?
It is normally used for product dosing, depending on the volume of water that passes through the pipe and is controlled by the counter.
how does a pulse emitter meter work?
As what we want is to dose, the meter is "programmed" to inject at a certain number of pulses. Once the meter has "programmed" the number of pulses, it sends an electrical signal to the dosing pump to inject the corresponding product.
If, for example, the product is liquid chlorine, we would have to test how many pulses would inject enough product for the chlorine level to be optimal.
To install the meter, this rule must be respected: a straight section of 8 times the nominal diameter of the meter and 6 times at the outlet.
Characteristics of the impulse emitter meter.
- For cold water up to 30ºC.
- Maximum voltage 24V - 0,2 A
- Supplied with 2 meter cable
- For horizontal mounting
- Minimum nominal flow rate that must pass through the meter installed horizontally: 450 l/h.
Dimensions
| 13 | 20 | 25 | 30 | 40 | 50 | ||
| QMax | Maximum flow rate m3/h | 3 | 5 | 7 | 10 | 20 | 30 |
| Qn | Nominal flow rate m3/h | 1,5 | 2,5 | 3,5 | 5 | 10 | 15 |
| Qmin | Flow rate | 30 | 50 | 70 | 100 | 200 | 450 |
| Working pressure bar | 16 | 16 | 16 | 16 | 16 | 16 | |
| Weight with fitting | 0,660 | 0,840 | 1,750 | 2,000 | 3,460 | 6,100 | |
| Weight without fitting | 0,500 | 0,600 | 1,280 | 1,330 | 2,240 | 4,900 | |
| Maximum diameter "C | 72 | 72 | 100 | 100 | 100 | 100 | |
| Length "A" without fitting | 110 | 130 | 160 | 160 | 200 | 300 | |
| Length "B" with fitting | 190 | 228 | 260 | 280 | 340 | 460 | |
| D | 138 | 143 | 185 | 185 | 200 | 162 | |
| E | 66 | 77 | 103 | 103 | 120 | 162 | |
| F | 16 | 19 | 34 | 34 | 42 | 57 |
