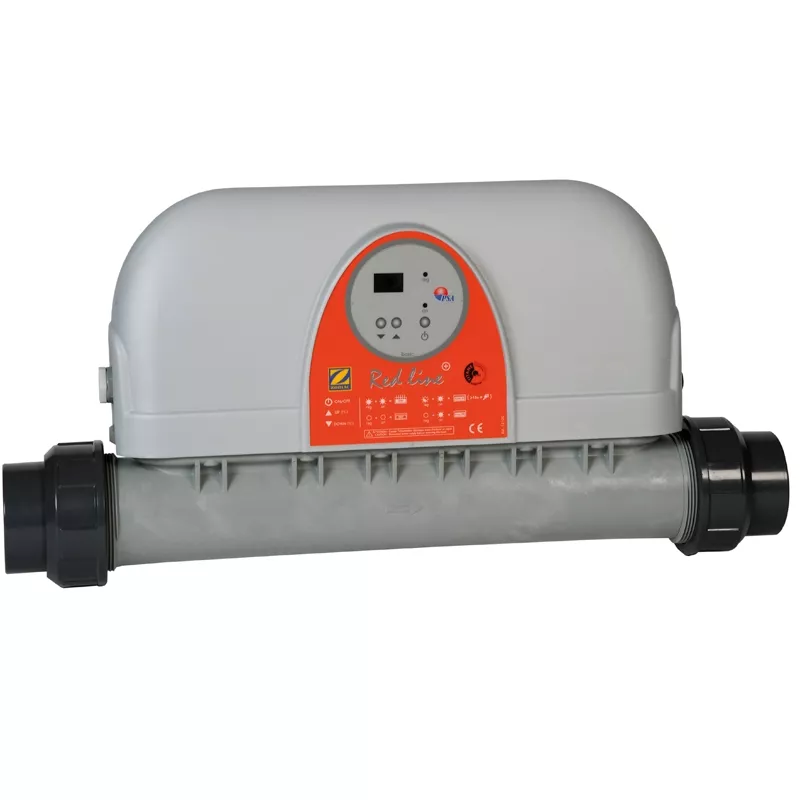

Swimming Pool Heater Zodiac RED LINE 3
ref: 08CAW40RDE3 ean13: 9317545032450 sku: W40RDE3
- Heater Zodiac mod. RED LINE
- Code: W40RDE3
- Power 3 KW
- TITANIUM heating element and polyamide casing
- The best quality/price ratio
- Easy use and maintenance with digital thermostat and sensitive buttons for regulation
- Easy installation with 50-63 mm Ø connections
- Compact for narrow technical rooms with a total length of 538mm. 80 mm wide and 222 mm high
€1,049.00
Free shipping
Technical characteristics
Heater Zodiac RED LINE
The electric heater is an alternative for heating swimming pool water. These devices are easy to install. They are ideal for heating small pools, spas or whirlpools.
The Zodiac RED LINE 3 is ideal for heating pools up to 20 m3.
The electric heater is the simplest heating solution to install. It is installed directly in the pool's filtration circuit.
It is only necessary to set the heater to the desired temperature and the temperature increase is reached within 2 to 5 days. To increase the temperature, set the filtration to continuous mode, once the desired temperature has been reached, reset the filtration to automatic position.

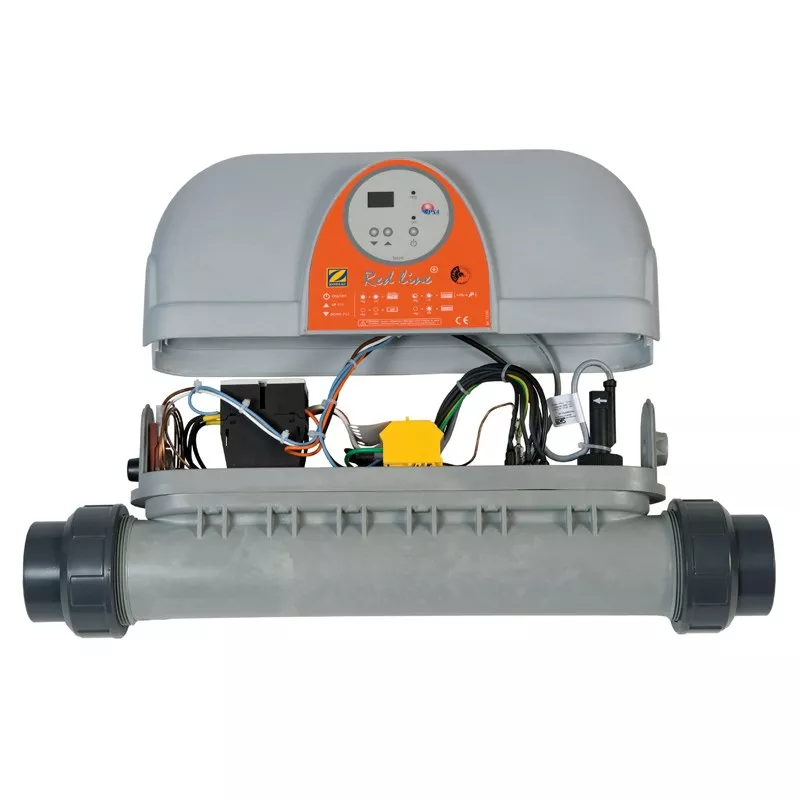

The electric heaters Zodiac-PSA consist of a polyamide tube and a titanium heating element. The water is heated when it comes into contact with the resistance inside the tube.

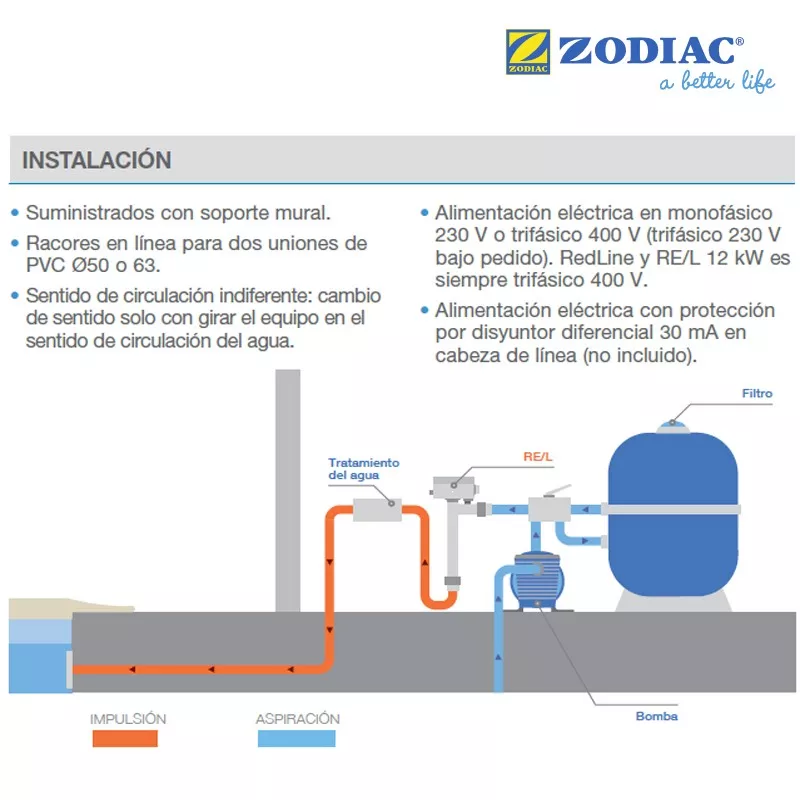

Installation Heater Zodiac:
- In-line mounting: Minimal pressure losses.
- Regulator with LCD display: Accuracy and ease of use.
- In-line connection by two PVC fittings Ø 63 + reductions 63-50,
- The unit must be installed in the direction of water flow.
- Power supply in single-phase 230 V or three-phase 400 V (three-phase 230 V on request). The 12 kW model is always three-phase 400 V.
- Power supply with 30 mA differential circuit breaker protection at the head of the line (not included).
RED LINE characteristics:

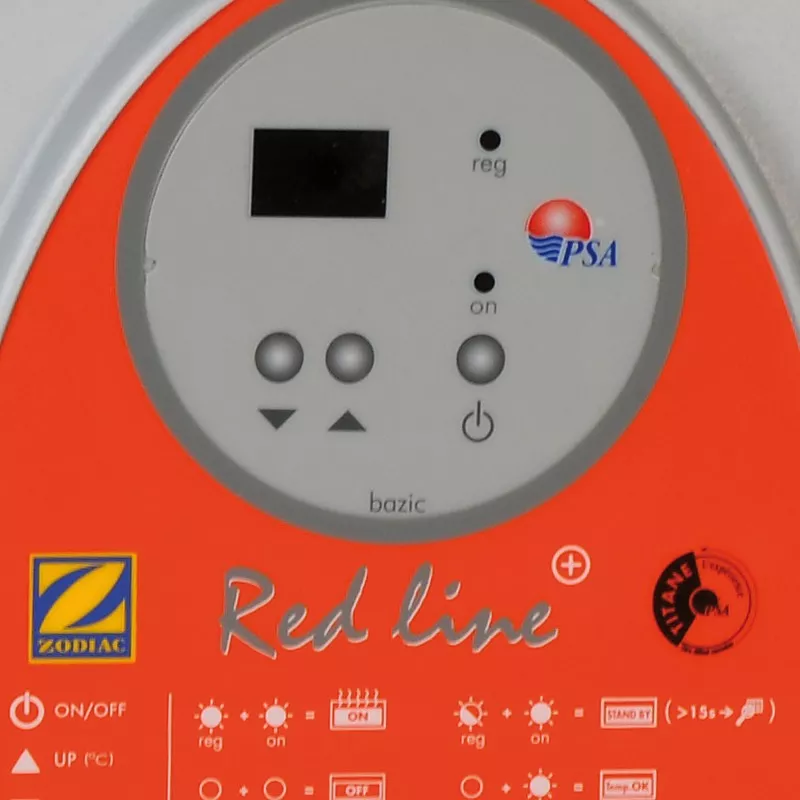

- Control thermostat (+- 0.5ºC) with LCD display and timer.
- High temperature limiter.
- Flow switch.
- Power contactors.
- On / off switches + indicators.
- Complete system, connected by cable, which does not need another control unit.
- 2 years warranty
Data Sheet
- Type of current
- Single-phase 220V
- Power input (at 15ºC)
- 0 - 3 kw
- Resistance in
- Titanium
- Thermostat
- Digital
