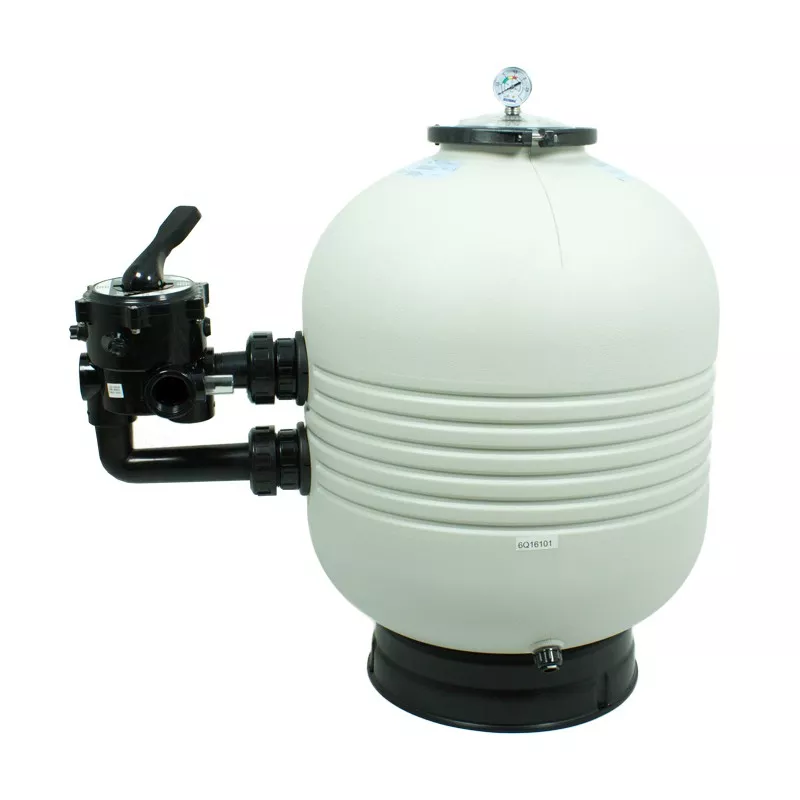

Swimming pool filter M3000 480 lateral
ref: 06FI29577 ean13: 2000000295770 sku: 29577
- M3000 Series Pool Filter
- Code 29577
- Diameter 480 mm
- Made of injected plastic
- INCLUDES 6 WAY SELECTOR VALVE OF 1" 1/2.
- Manometer on the upper part
- Transparent lid with quick release fastener with clasp
€319.00
Free shipping
Technical characteristics
Pool filter M3000 480 Lateral
For pools up to 50 m3
Features Filter M3000 480 Lateral
- Filter made of one-piece plastic material.
- Equipped with integrated pressure gauge and air-water drain.
- Light grey colour.
- Selector valve included.
- Maximum flow rate : 9000 lts/hour.
- Silex load: 85 kg.
- Zelbrite load: 64 kg.
- Maximum working pressure: 2,5 Kg/cm2.
- Filtration speed: 50 m3/h/m2
- Filters made of one-piece plastic material.
Dimensions of pool filter M3000 Lateral
 | | | |
| M3000 LATERAL 430 | M3000 LATERAL 480 | M3000 SIDE 560 | |
| Diameter (mm) | 430 | 480 | 560 |
| H (mm) | 690 | 729 | 816 |
| H (mm) | 346 | 398 | 398 |
| N (mm) | 272 | 295 | 345 |
| M (mm) | 397 | 420 | 470 |
| Connections | 1" 1/2 | 1" 1/2 | 1" 1/2 |
| Flow rate (m3/h) | 7 | 9 | 12 |
| Sand load (kg) | 70 | 80 | 135 |
| Net weight (kg) | 10 | 11 | 14 |
| WARRANTY | 2 years | 2 years | 2 years |
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 480 mm
- For pumps
- 0.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 50 - 100 kg
- Material
- Injected plastic
- Type of filtration
- Sand
