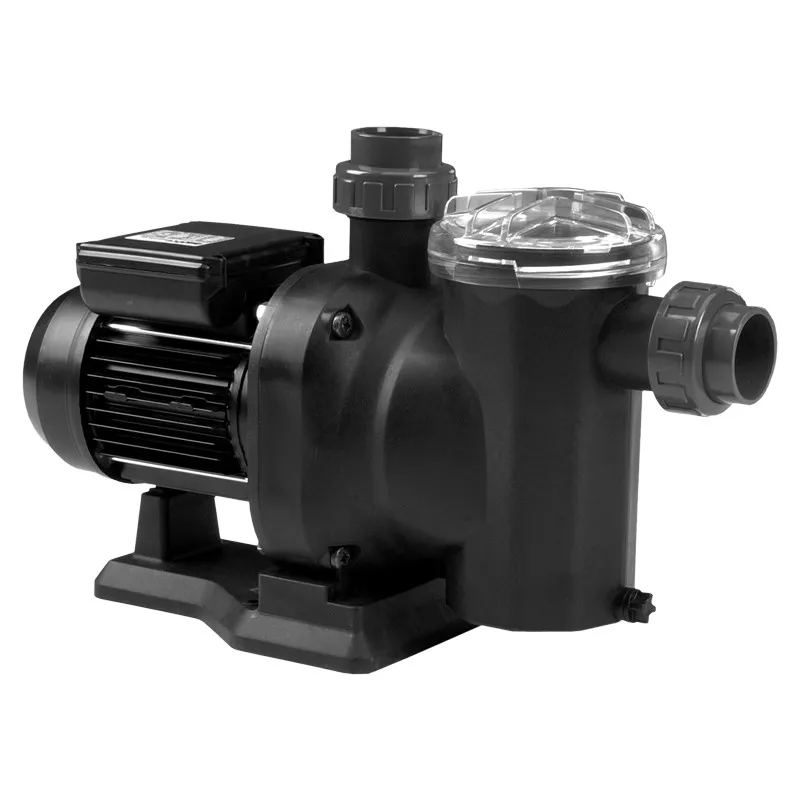

Astrapool Sena 1/3 hp single-phase pool pump
ref: 05BO25461 ean13: 8420382071375 sku: 25461
- Self-priming pump Astralpool Sena
- Power: 1/3 hp single-phase
- Manufacturer: Astralpool
- Code: 25461
- Maximum flow of 9000 lts
- Ideal for filters between 300mm-400mm
- Pre-filter capacity of 2 lts.
- Low noise.
€249.01
Free shipping
Technical characteristics
Swimming pool pump Astralpool Sena 1/3 hp single-phase - 25461
Design and high performance
In the Sena family of pumps, both maximum flow and low noise levels go hand in hand with the intention of fully satisfying the requirements of the private pool and with an attractive design that is already characteristic of AstralPool. It is worth highlighting their self-suction capacity, over 2 metres without a foot valve. In addition, the Sena pumps are made of technical plastics with a 2-litre pre-filter and a transparent cover that allows the inside of the pre-filter to be seen.
The Sena family is available from 1/3 CV to 1.25 CV with single-phase motors and from 3/4 CV to 1.25 CV in three-phase motors, allowing them to work at 230 V and 230/400 V with a variation of ± 10% with respect to the nominal voltage due to the fact that they incorporate Eurovoltage motors.
Sena pumps comply with the specifications of the EN-60335-2-41\A1:2001 standard, which has led to them obtaining the TÜV-GS mark.
Simple and reliable
Sena pumps are a simple solution for pumping water from pools and water features with low to medium flow requirements. Pumps are easy to install thanks to the fittings already included.
Small dimensions

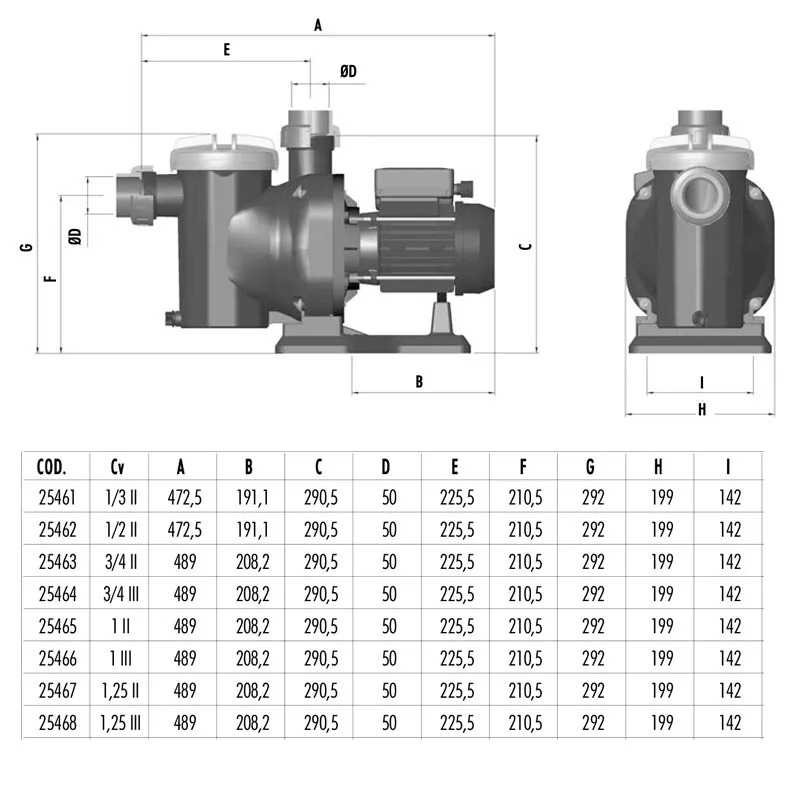

Built to be a compact self-priming pump. All Sena references are shorter than 490 mm and narrower than 200 mm. A pump that fits even in the smallest technical boxes and cabins.
For all types of pools

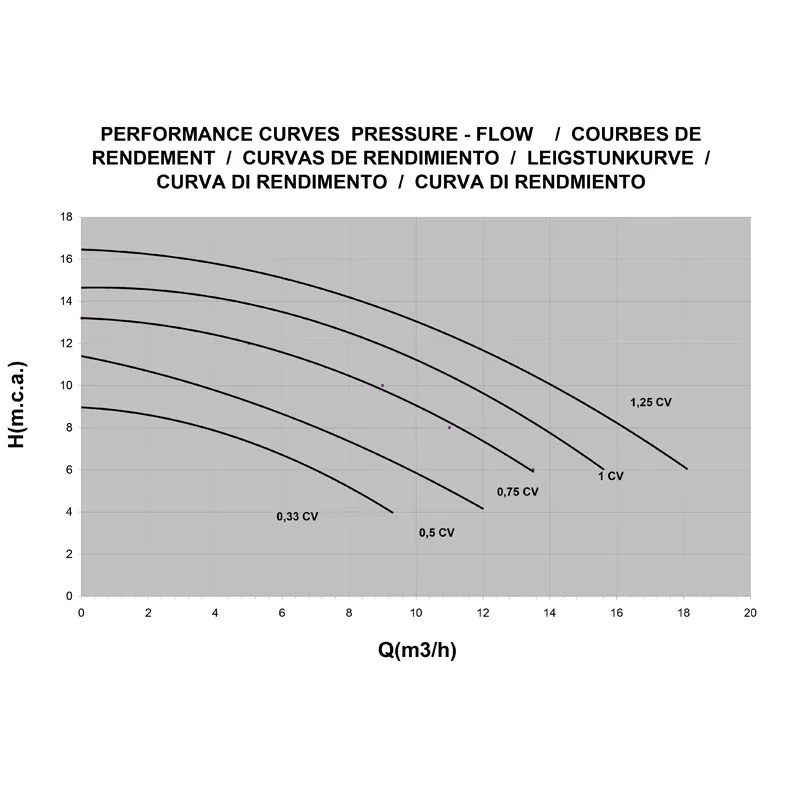

Available in single-phase and three-phase motors, Sena pumps can handle 3.5 to 16 m3/h. Supports all common chemical treatments, including saltwater chlorination.
Main features
- Power: 1/3 hp.
- Current: single-phase.
- Stainless steel pump screws.
- Connection fittings for suction and delivery of 1.5" for Ø 50mm sleeve.
- Mechanical seal made of AISI 316.
- Impeller made of NORYL®.
- Pump body and diffuser made of polypropylene with mineral charge and glass fibre.

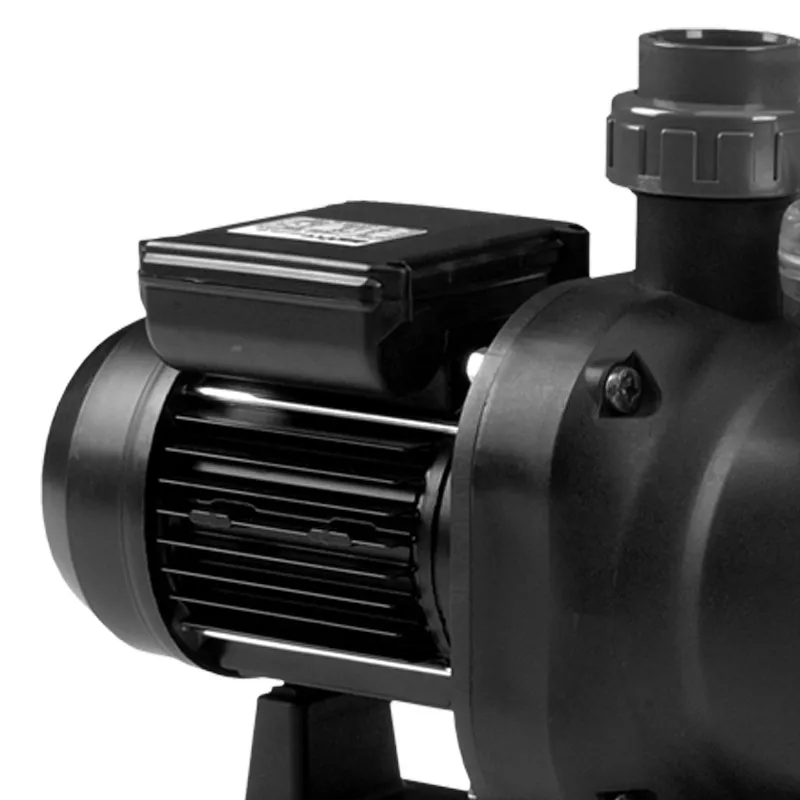

- Class F insulation and IP-55 motor protection, allowing them to work in environments with high humidity and high temperatures.
- Self-priming capacity above 2 m.
Low noise level
Sena pumps work at full performance with an optimum noise level for all models, so that the perceived noise effects in the pool environment are minimised.
Practical design

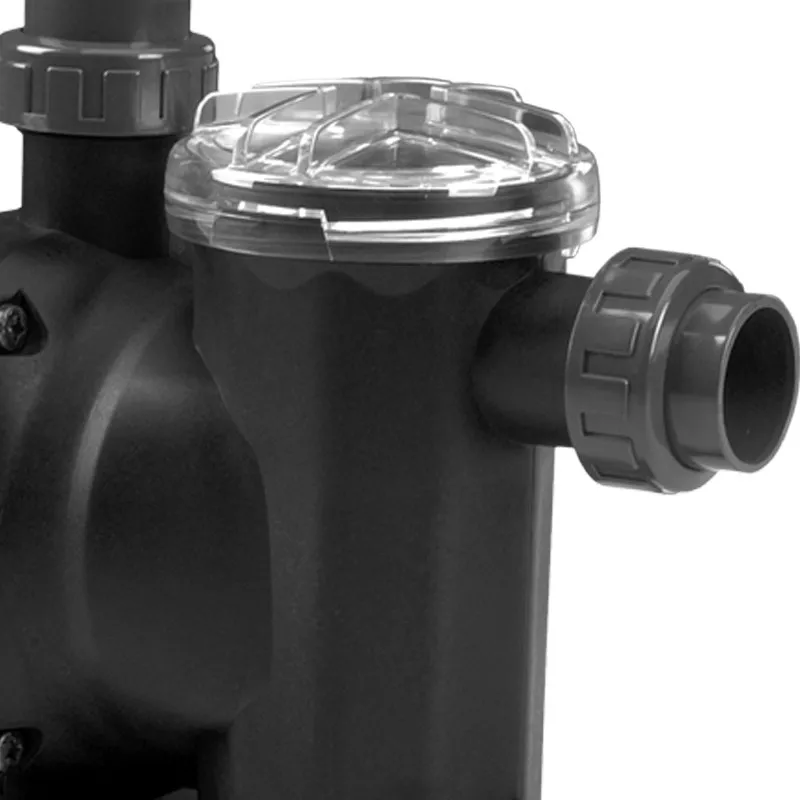

The entire range of Sena pumps incorporates the bayonet fitting on the pre-filter cover, which allows the pump pre-filter to be closed in four different positions in a single movement. The cross configuration of the pre-filter cover allows any tool to be used to open or close it. Also, to fix the foot to the body of the pump, we have opted for a foot of great stability and easy assembly, eliminating the screws as one of its components.
Pump elements
| Model | Voltage | Current | Power consumption | Motor power (KW) | Motor power (HP) | Capacitor | Noise level | |
 | SENA 1/3HP (25461) | 230 V | 2.1 A | 0.46 kW | 0.23 kW | 0.33 HP | 12 µF | 61 dB |
| SENA 1/2 HP (25462) | 230 V | 2.7 A | 0.61 kW | 0.41 kW | 0.5 HP | 12 µF | 61 dB |
| SENA 3/4 HP (25463) | 230 V | 3.5 A | 0.79 kW | 0.56 kW | 0.75 HP | 14 µF | 75 dB |
| SENA 1 HP (25465) | 230 V | 4.2 A | 0.91 kW | 0.63 kW | 1 HP | 16 µF | 75 dB |
| SENA 1.25 HP (25467) | 230 V | 5.4 A | 1.19 kW | 0.82 kW | 1.25 HP | 16 µF | 75 dB |
Data Sheet
- Type of current
- Single-phase 220V
- For Filters
- 300mm-400mm
- Brand
- Astralpool
- Variable Speed
- No
- Power (hp)
- 0.33 HP
