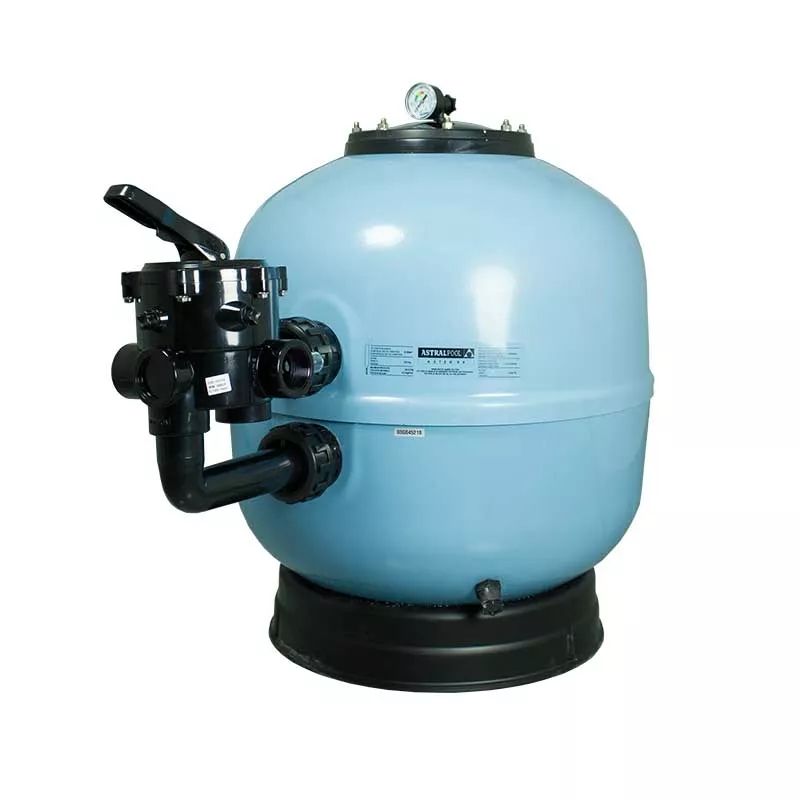

Swimming pool filter Astralpool Ice diameter 500
ref: 06FI73179CP sku: 73179CP
- Ice pool filter
- Diameter: 500 mm
- Manufacturer: Astralpool
- Code: 73179CP
- Made of reinforced polyester
- INCLUDES 6-WAY SELECTOR VALVE 1" 1/2
- Pressure gauge on top
- Cover with screws
€349.00
Free shipping
Technical characteristics
CHARACTERISTICS FILTER ASTRALPOOL ICE DIAMETER 500
- Recommended for pools up to 80 m3.
- Equipped with pressure gauge and air-water purge.
- Screw lid, with a new design: lighter, more resistant and with greater watertightness.
- Includes 6-way selector valve 1" 1/2.
Operations: filtering, washing, rinsing, recirculation, emptying and closing. - Assembled with manifold and diffuser in unalterable plastic material.
- Filter made of reinforced polyester and fiberglass.
- Excellent finish in satin light blue color.
- Maximum flow rate: 9.5 m3/h.
- Filtration speed: 50 m3/h.
- Maximum working pressure: 2.5 kg/cm2.
- Sand load: 85 kg.
- Glass load: 76 kg.
 | | | | |
| ICE 500 | ICE 600 | ICE 650 | ICE 750 | |
| Diameter (mm) | 500 | 600 | 650 | 750 |
| H (mm) | 760 | 850 | 890 | 940 |
| M (mm) | 415 | 455 | 505 | 555 |
| N (mm) | 290 | 330 | 350 | 325 |
| Connections | 1" 1/2 | 1'' 1/2 | 1"1/2 | 2'' |
| Flow rate (m3/h) | 9.5 | 15 | 18 | 22 |
| Pool volume (m3) | 72 | 112 | 138 | 168 |
| Sand load (kg) | 85 | 125 | 175 | 300 |
| Service pressure (bar) | 2,5 | 2,5 | 2,5 | 2.5 |
| Net weight (kg) | 16 | 21 | 30 | 38 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years |
| Selector valve | Yes | Yes | No | Yes |
Data Sheet
- Recommended pool size
- 20-50 m3
- Filter diameter
- 500 mm
- For pumps
- 0.5 HP
- Valve
- 1 1/2" side
- Sand load (kg)
- 50 - 100 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
