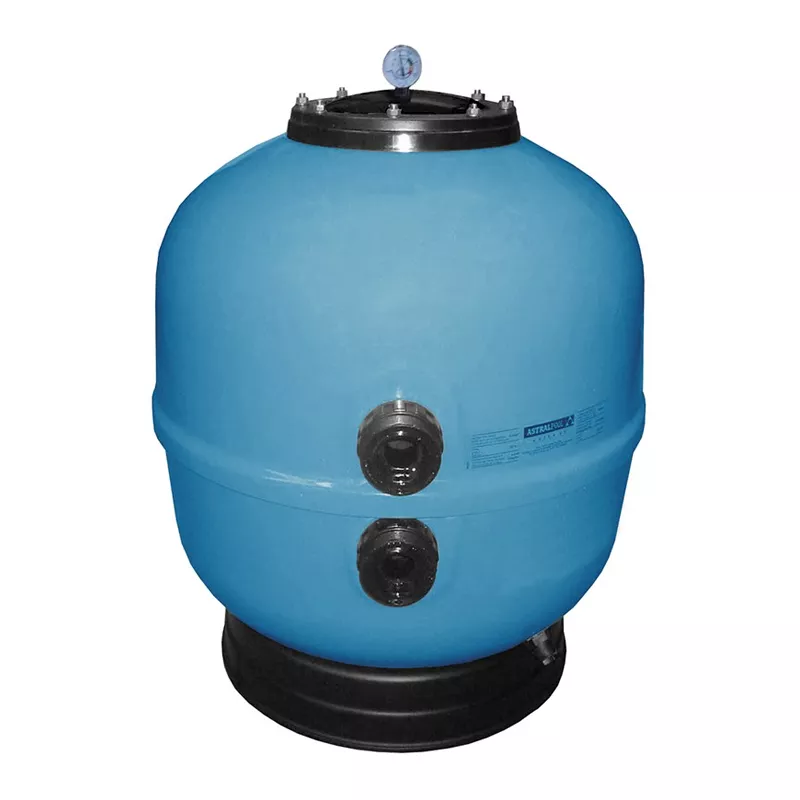

Swimming pool filter Astralpool Ice diameter 650 Without Valve

Swimming pool filter Astralpool Ice diameter 650 Without Valve

ref: 06FI73181-0100 ean13: 8432611739512 sku: 73181-0100
  • Ice pool filter
  • Diameter: 650 mm
  • Manufacturer: Astralpool
  • Code: 73181-0100
  • Made of reinforced polyester
  • Pressure gauge on the top
  • Cover with screws
Questions about this product?
Discuss it with us and ask us. Our technicians will solve your doubts.
€429.01
Free shipping
Free Shipping + info

Bought together Usually

Items: 1
Total price: €429.01

Technical characteristics

CHARACTERISTICS FILTER ASTRALPOOL ICE DIAMETER 600

  • Recommended for pools up to 80 m3.
  • Equipped with pressure gauge and air-water purge.
  • Screw lid, with a new design: lighter, more resistant and with greater watertightness.
  • Includes 6-way selector valve 1" 1/2.
    Operations: filtering, washing, rinsing, recirculation, emptying and closing.
  • Assembled with manifold and diffuser in unalterable plastic material.
  • Filter made of reinforced polyester and fiberglass.
  • Excellent finish in satin light blue color.
  • Maximum flow rate: 15 m3/h.
  • Filtration speed: 50 m3/h.
  • Maximum working pressure: 2,5 kg/cm2.
  • Sand load: 125 kg.
  • Glass load: 112 kg.


ICE 500 ICE 600 ICE 650 ICE 750
Diameter (mm) 500 600 650 750
H (mm) 760 852 890 940
M (mm) 415 455 505 555
N (mm) 290 330 350 325
Connections 1'' 1/2 1'' 1/2 1" 1/2 2"
Flow rate (m3/h) 9.5 15 18 22
Pool volume (m3) 72 112 138 168
Sand load (kg) 85 125 175 300
Service pressure (bar) 2.5 2.5 2,5 2,5
Net weight (kg) 16 21 30 38
WARRANTY 2 years 2 years 2 years 2 years
Selector valve Yes Yes No Yes

Data Sheet

Recommended pool size
50-80 m3
Filter diameter
650 mm
For pumps
1 HP - 1.5 HP
Valve
without valve
Sand load (kg)
150 - 200 kg
Material
Laminated polyester
Type of filtration
Sand
