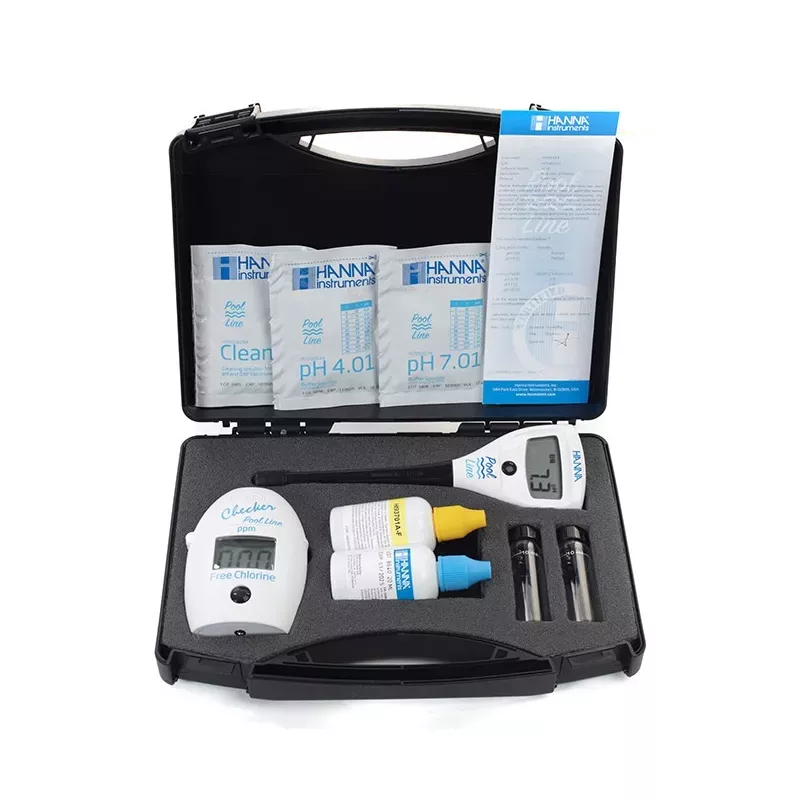

Briefcase Hanna Pool Line Free Chlorine and pH measurement
- Case set
- Measurement of:
- Free Chlorine
- pH - Manufacturer: MALETCLPHCHECK Hanna
- Code: MALETCLPHCHECK
- Ideal for saline chlorination
- Includes:
- Checker Pool Line HI7014 for free chlorine measurement
- Checker Pool Line Tester HI981014 for pH measurement - Complies with UNE-ISO 17381:2012 standard
- Supplied with 2 measuring cuvettes with lids, liquid reagent for 100 free chlorine tests, pH 4.01 and 7.01 calibration and electrode cleaning solutions, instruction manual, batteries, carrying case and warranty
Technical characteristics

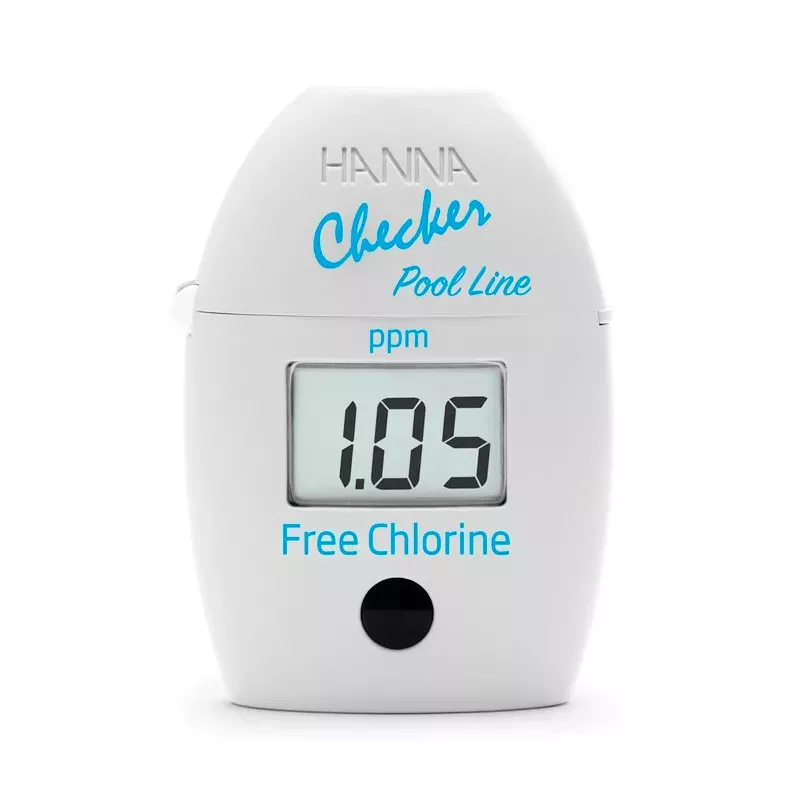

Checker Hanna free chlorine analyzer HI7014

The HANNA HI7014 free chlorine checker is a digital colorimeter for chlorine testing. With the HI7014 chlorine meter you can easily, accurately and cost-effectively measure free chlorine. Free chlorine is the active form of chlorine used to disinfect drinking water, swimming pools and spas.
The benefits of chlorine on water are many, and it is precisely these benefits that make the use of this product so important in drinking water tanks and pool maintenance. First of all, we must emphasize that it is a powerful germicide since it reduces the level of pathogenic microorganisms in the water to levels that are almost impossible to measure. Chlorination allows the control of taste and odors reducing them, this is because chlorine oxidizes substances that occur naturally, we refer to the secretions of smelly algae and odors of vegetation that is in the process of decomposition; chlorine gives the water odorless attributes and favorably modifies its taste.
how is it used?
Designed as a more accurate alternative to chemical test kits, the HI7014 provides fast and accurate results in a few simple steps:
STEP 1. Zero the checker with your water sample.
STEP 2. Add reagent to the cuvette.
STEP 3. Insert the cuvette into the Checker.
STEP 4. Press the button and read the results.
In the "Documents" tab you can download the complete manual where you will see a more extensive explanation, as well as other tips for use.

Technical table
| Range | 0.00 to 2.50 ppm |
| Resolution | 0.01 ppm |
| Accuracy at 25ºC | ±0.03 ppm ±3% of reading |
| Light source | LED at 525 nm |
| Light detector | silicon photocell |
| Method | adaptation of USEPA 330.5 and Standard Method 4500-Cl-G |
| Environment | 0 to 50ºC; RH max. 95% non-condensing |
| Battery type | (1) 1.5V AAA |
| Automatic shutdown | after two minutes of non-use |
| Dimensions | 81.5 x 61 x 37.5 mm (81.5 x 61 x 37.5 mm) |
| Weight | 64 g |

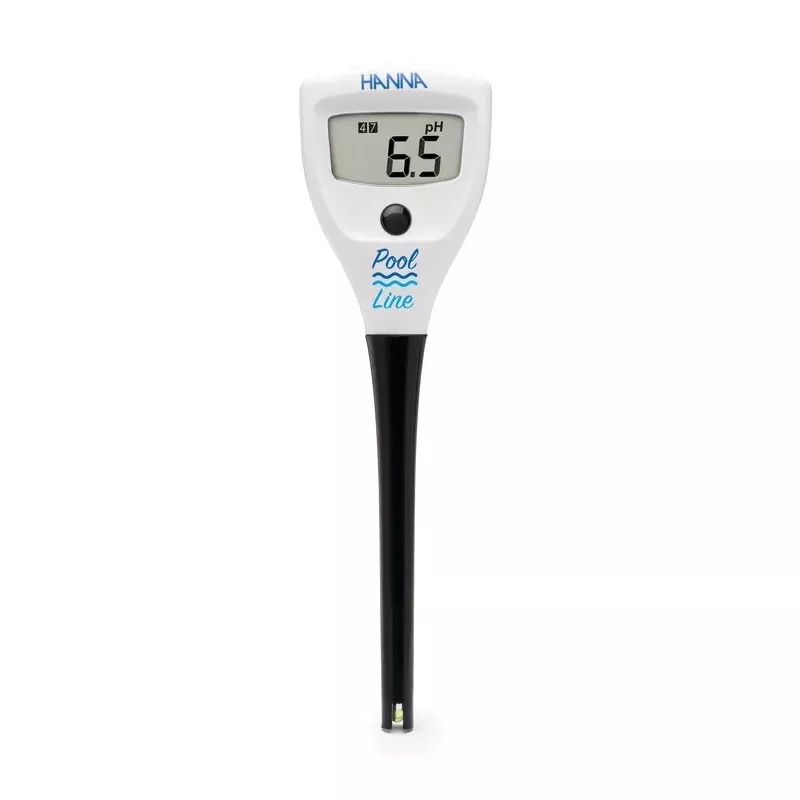

Hanna Checker Pool Line pH Tester HI981014
- PH measurement
- High accuracy
- Automatic 2-point calibration
- Replaceable pH electrode
- Large LCD display
- Conforms to UNE-ISO 17381:2012 standard
