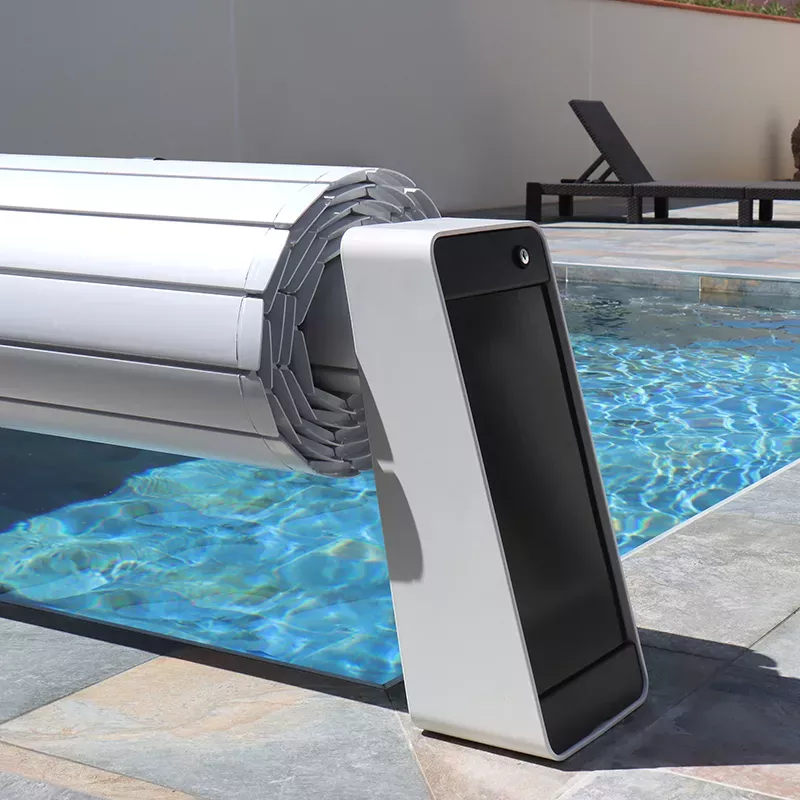

Astralpool Bellasun 9x5 meters automatic solar canopy with elevated louvers

Astralpool Bellasun Raised automatic solar slatted cover for 9x5 swimming pool

why install the Astralpool Bellasun automatic raised solar cover for your pool?

Water saving

The cover reduces water loss through evaporation by 95%, which accounts for 80% of all pool water evaporation.

Energy savings

The cover minimizes the energy consumption of the heat pumps, as well as the filtration by keeping the water isolated from the outside, which will have an impact on the economic cost.

Safety

The cover is a basic and necessary safety element for the well-being of the bathers, especially for the youngest members of the household.

Guaranteed safety

The automatic cover guarantees optimum pool safety.

It complies with the NF P90-308 standard, depending on the chosen safety system:

- INOX safety system, the cover is compliant if the inside width of the pool is greater than or equal to 2.30 m.
- ABS safety system, the cover is compliant if the inside width of the pool is greater than or equal to 2 m.

Heavy-duty flanges for wall or under-crown mounting close and permanently secure the pool. Once closed, access to the water becomes impossible. The cover, once closed, also protects the pool from impurities: leaves, pollen, dust, etc. Finally, it provides a thermal barrier: it reduces water evaporation and heat loss.

Solar energy: Eco-responsible

The opening and closing of the pool cover is powered by solar energy. The photovoltaic panel, integrated into the foot of the cover, captures the solar energy necessary for its operation. There is no need for an electrical outlet.

ecological, economical and practical solution!

The only limitation: the foot must be exposed to the sun. Once charged, the battery allows 20 openings/closings of the pool.

Exclusive French-made design

Manufactured in France, the BELLASUN model was designed in close collaboration with a team of designers. Its modern, aesthetic and aerial shape symbolizes infinite modernity. To enhance its harmony, the stainless steel safety straps are matched to the color of the PVC slats.

The roller shaft with a diameter of 146 or 196 mm is made of anodized aluminum and the feet are made of rilsanized aluminum for greater durability and corrosion resistance.

Motorized solar winder

Tubular motor: ease of use

Thanks to its tubular motor located inside the winder shaft, with a simple turn of the key, the cover is rolled up and unrolled in a moment.

Disengageable motor: safety

In the event of a breakdown, the pool can be secured manually.

Limit switch: peace of mind

BELLASUN is equipped as standard with a limit switch system. Once the cover closure is activated, the cover stops automatically at the end of the pool.

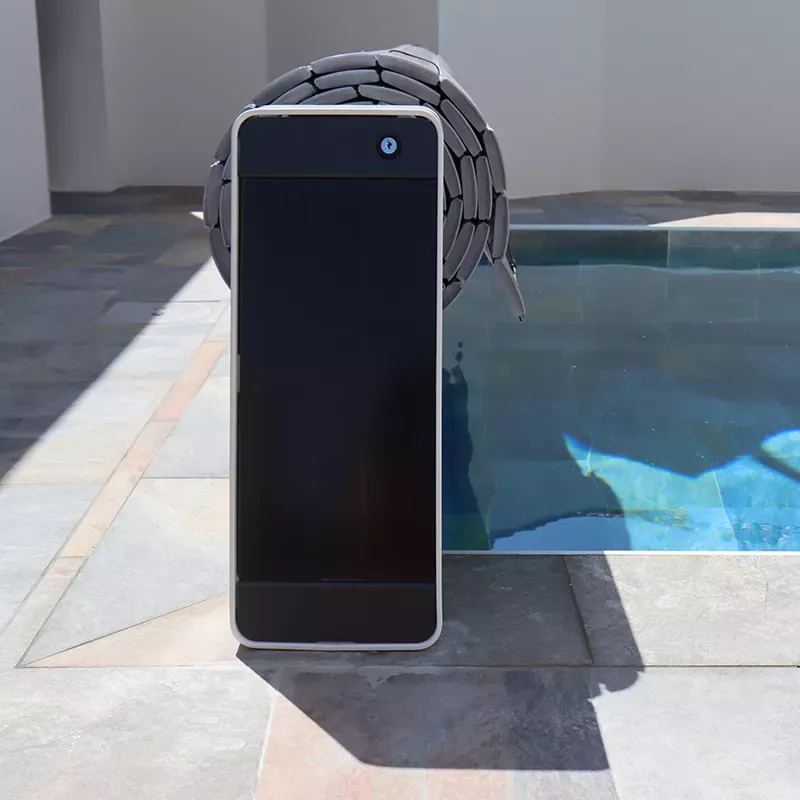

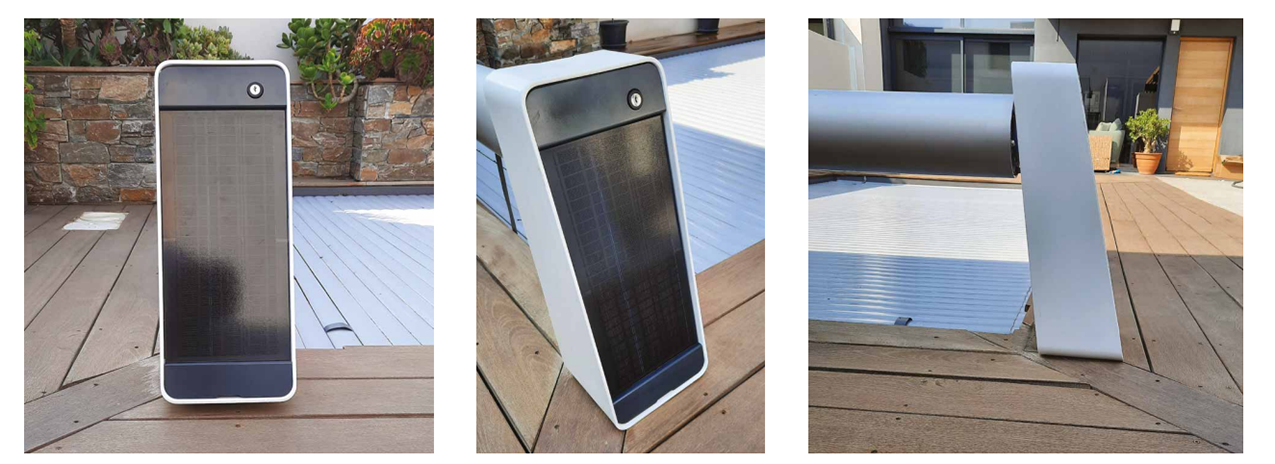

Photovoltaic panel: eco simplicity

No electrical socket is necessary. The photovoltaic panel supplies the necessary energy. The charged battery allows the closing of 20 openings/closings. A charge regulator protects the battery from deep discharges.

PVC roof slats

The slats are an integral part of the automatic raised roof.

They comply with regulations, aesthetics and sustainability.

The PVC slats guarantee:
- Compliance with the standard
- UV and shock resistance
- A refined slat profile
- Wide range of colors to match the environment
- Excellent buoyancy and watertightness thanks to welded plugs
- A 3-year guarantee of its watertightness
- Compatibility with water treatment by salt electrolysis
- PVC slats cut shape for all pool shapes
