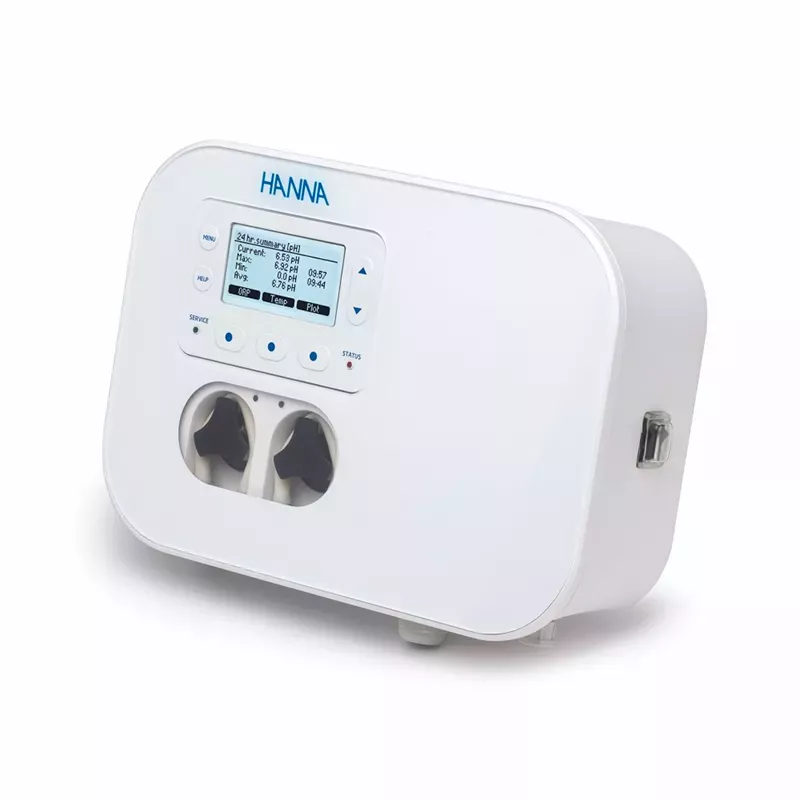

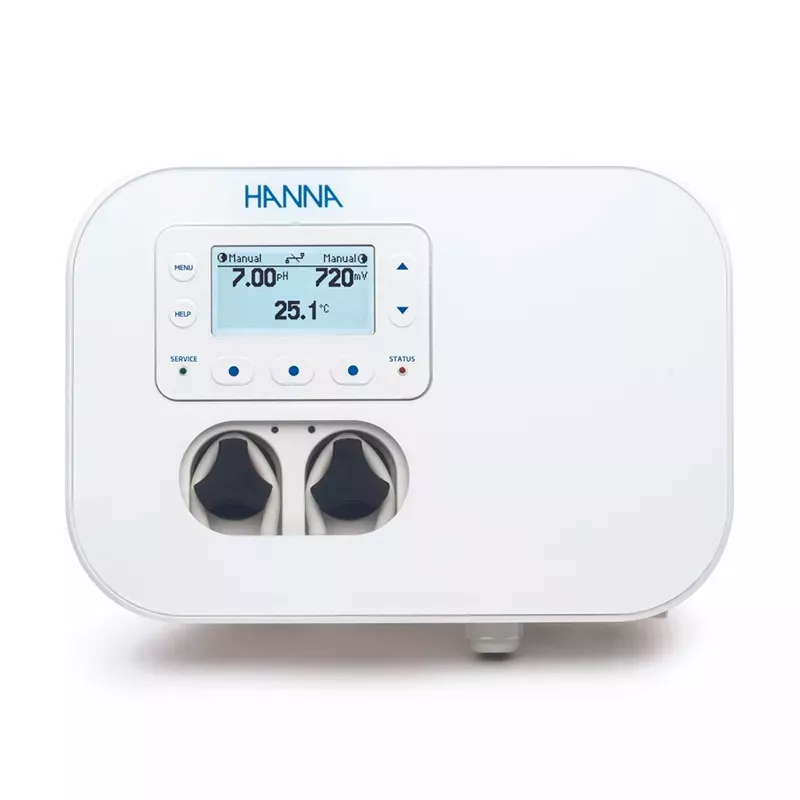

Automatic pH, ORP and Temperature Control Hanna BL132-20 with flow chamber panel and Ethernet

PH, ORP and Temperature Controller Hanna BL132-20 with flow chamber panel and Ethernet connection

All-in-one solution for automatic pH and chlorine control

The HANNA Instruments BL13X Series is designed to maintain constant pH, Chlorine and Bromine levels in pools, hot tubs and spas optionally allowing remote connection for viewing and remote control via the Hanna Cloud web application.

Panel mounted with measuring chamber, which achieves a laminar flow and keeps the electrode membrane clean, achieving a more stable measurement for a longer time.

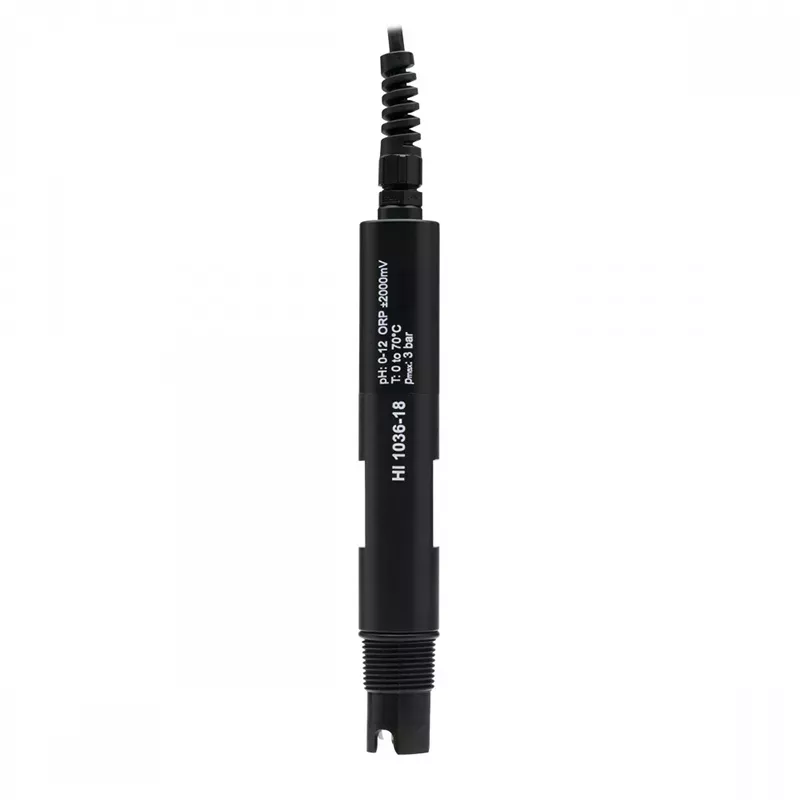

Includes a 3-in-1 digital electrode that measures pH, ORP and temperature, all in one probe:
- Long-life solid electrode
- Thread for direct pipe installation
- Digital signal with galvanically isolated DIN connector
- "Matching Pin" system to eliminate interference.

what are the main features of the controller Hanna BL132-20?

- Controller with two pumps with adjustable flow rate.
- Same digital electrode for pH, ORP and Temperature with 2 meters of cable.
- Galvanically isolated DIN connector.
- Automatic pump ON/OFF and proportional control.
- Adjustable proportional band: reduces dosing when approaching the set point.
- Adjustable dosing flow rate from 0.5 to 3.5 L/hour.
- External dosing: 2 relays to pumps with higher flow rate or to a biocide generator on site.
- Dosing safety: only doses chlorine when the pH reaches the set point.
- Low chemical level and water flow switch.
- Programmable alarm system.
- Safety: isolated electrical and dosing compartments.

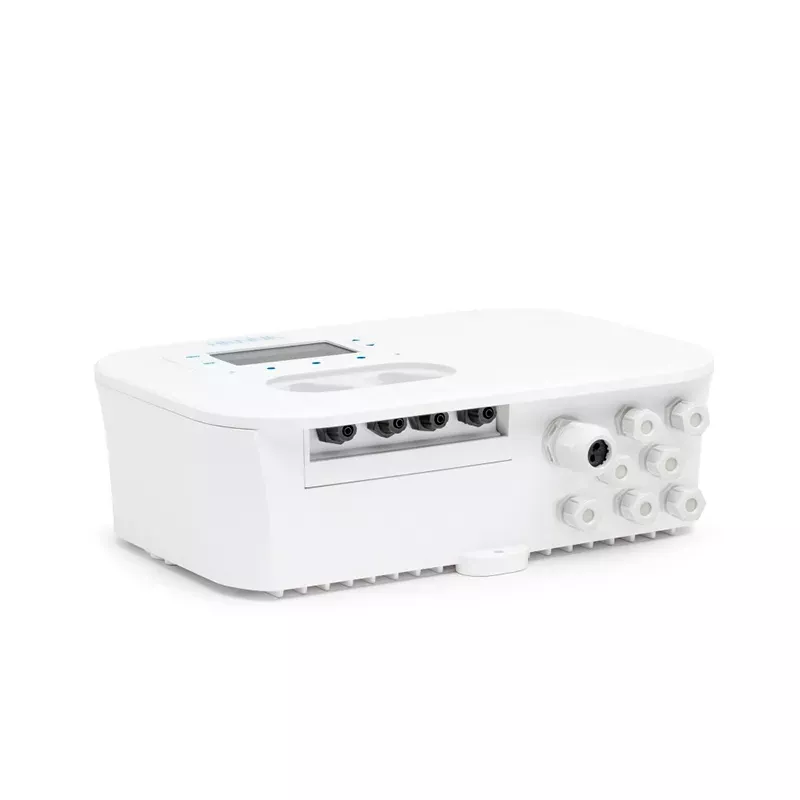

- Simplicity of assembly, easy access to connections with magnetized cover.
- LCD display for warnings with different colors.
- Automatic recording of measurements in adjustable intervals: 30s/1m/5m/15m/30m/1h.
- Password protection.
- Ethernet connection.

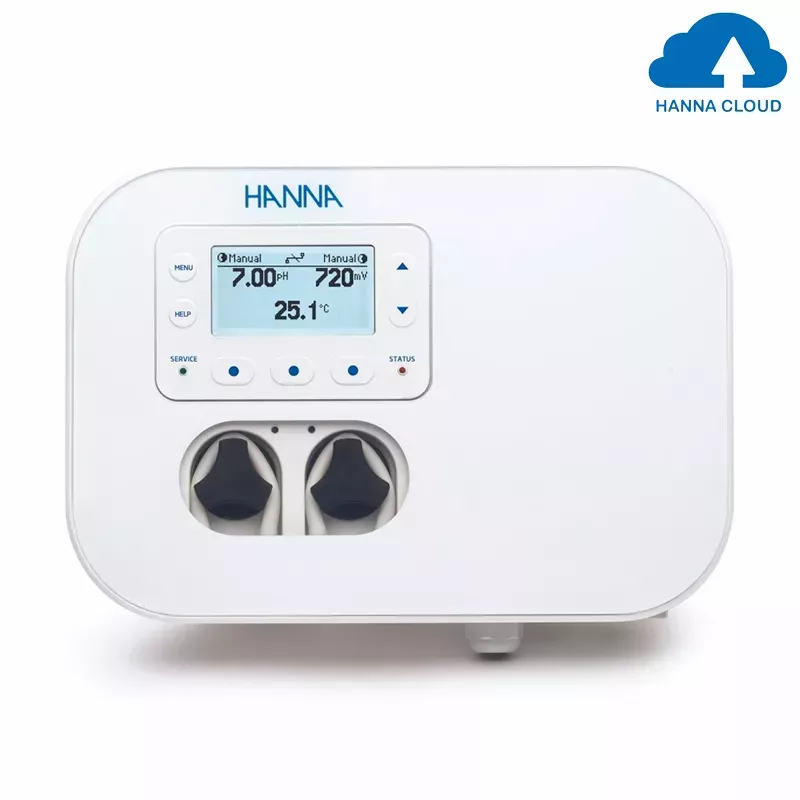

Connectivity Hanna Cloud

Hanna Cloud is a web-based application that connects you to BL131 and BL132. Measurements and data storage can be accessed from your PC, tablet or phone. Multiple devices can be registered to a single Hanna Cloud account.

Measurements, trends, history, device settings, alarms and messages are transmitted to your device as your instrument measures and controls your process.

Multiple secondary users can be added to your device account to monitor measurements and receive emails or pop-up messages from your meter.

Hanna Cloud incorporates technical and administrative security measures to reduce the risks of loss or misuse. These include a secure connection, device identity registration and password encryption.
