Peristaltic pump Etatron MyPool (ePool) Redox 3 l/h - 1.5 bar

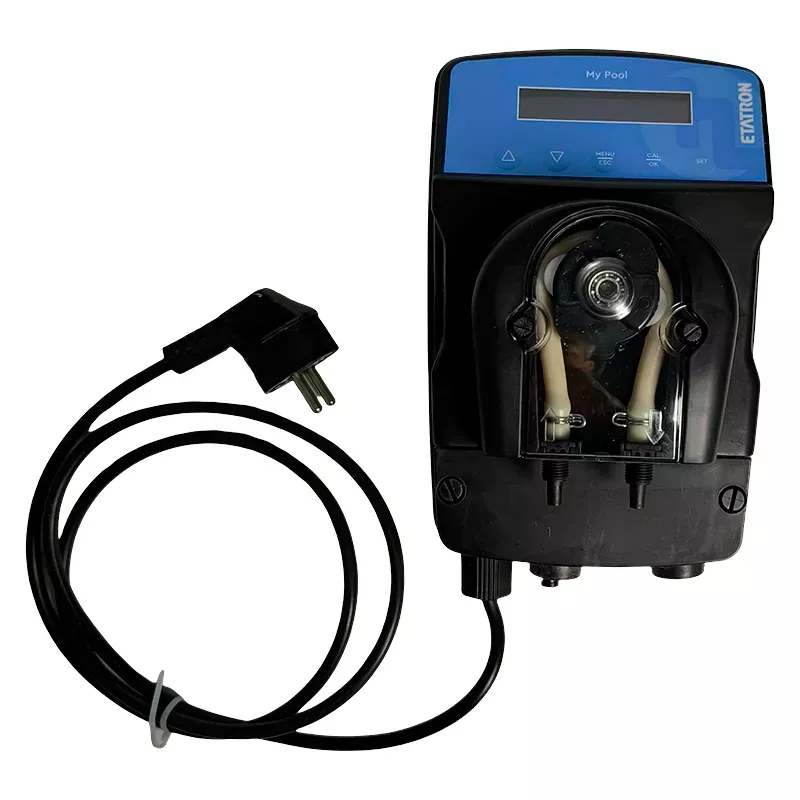

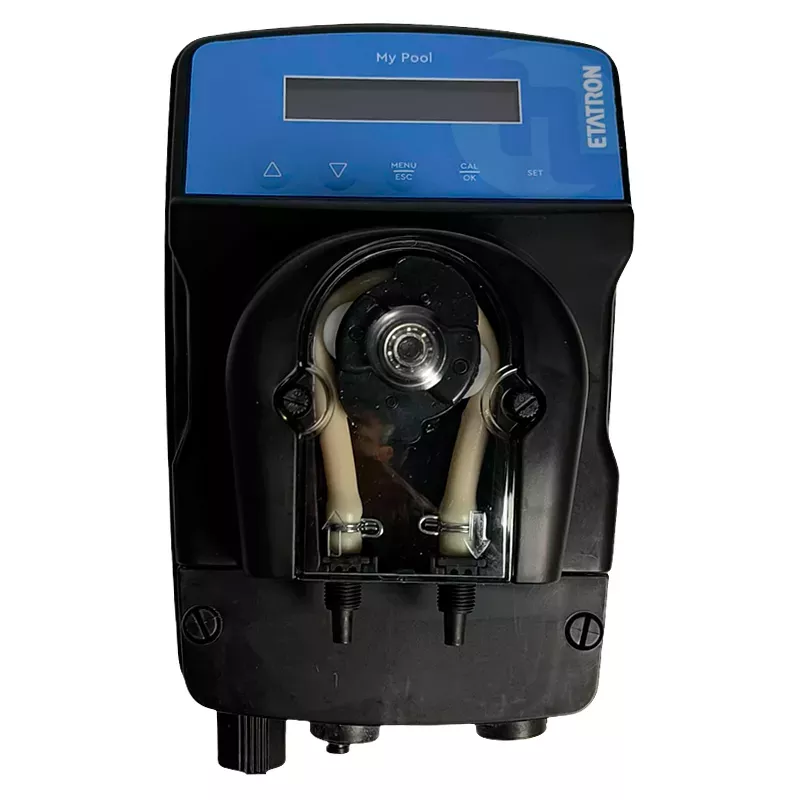

Peristaltic pump Etatron MyPool (ePool) Redox 3 l/h - 1,5 bar CXB4000402

The MYPOOL series of peristaltic dosing pumps is specially designed for domestic pools and spas, offering a precise and efficient solution for maintaining the chemical balance of the water.

Thanks to their advanced dosing system, these peristaltic pumps operate on the peristalsis principle, which consists of a motor with a central shaft connected to a series of compressor rollers that rotate in a circular fashion, like a waterwheel, and compress a flexible tube that surrounds them and through which the liquid flows, thus guaranteeing optimal and safe water treatment.

Peristaltic pumps are ideal for pumping liquid chemical products due to their simplicity and, in addition, they have a low cost compared to other types of pumps, both in terms of manufacturing and maintenance.

Main features of the pump Etatron MyPool Redox

- Proportional dosing. Automatically adjusts the amount of product dosed according to the measured Rx values.

- Measuring range. Range of +100 to +999 mV, crucial for measuring the oxidation-reduction potential in chlorine disinfection systems.

- Flow rate and pressure. With a flow rate of up to 3 l/h and a maximum pressure of 3 bar.

- Power supply and consumption. Powered by 230 V alternating current (50-60Hz), with a maximum consumption of only 15W.

- Activation and control mode. It offers ON/OFF or proportional activation modes, adjusting to the needs of the treatment system. The pump also allows the selection of a set point and the type of intervention (direct or reverse) for advanced customization of the dosing process.

- Hysteresis and activation delay. Hysteresis and pump activation delay functions to optimize the process and avoid unnecessary fluctuations in dosing.

- Overdosing alarm. Incorporates an overdosing alarm that indicates when the dosing limit has been exceeded, ensuring safe water treatment. It also has a relay output to signal alarm status and allow integration with other monitoring systems.

- Digital display. A clear 16-digit display in blue and white colors facilitates the visualization of the parameters and measured values, providing total control and easy follow-up.

what accessories are included in the packaging of the MyPool Redox dosing pump Etatron?

- Redox electrode with 5-meter cable.
- Saddle clamps.
- 1/2" polypropylene electrode holder.
- 650 mV calibration solution.
- PVC/FPM injection valve.
- Level probe.

Dimensions
