Salt chlorinator Astralpool Easy Salt Next VC 150 g/h pH/ORP

Salt chlorinator Astralpool Easy Salt Next VC 150 g/h pH/ORP

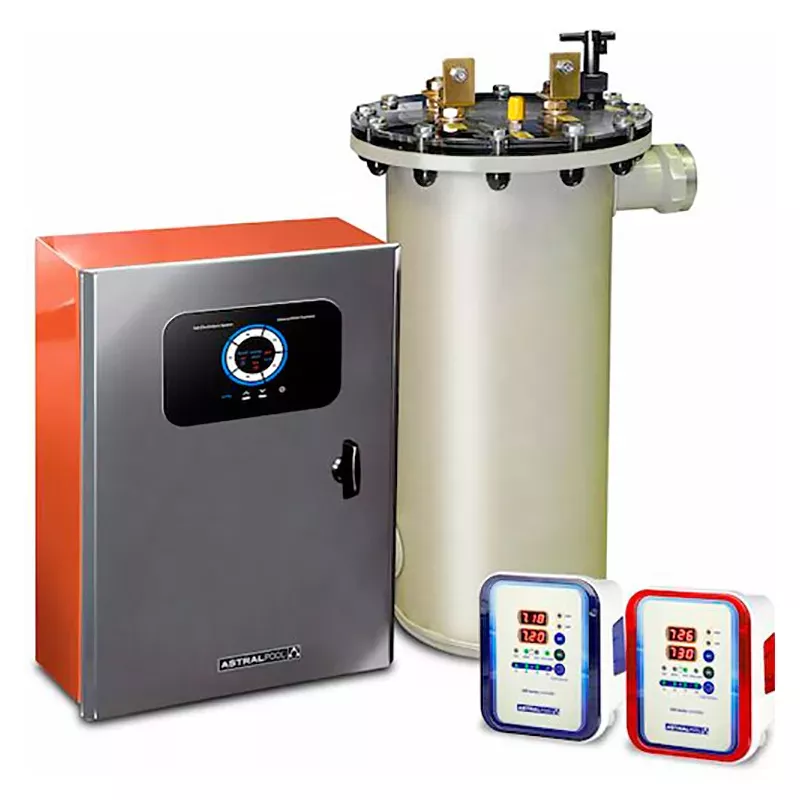

The salt chlorinator Astralpool Easy Salt Next VC is a self-cleaning salt electrolysis system for swimming pools. Ideal for community pools.

This product stands out for its compact design, which makes it perfect for those looking to optimize space without sacrificing performance. In addition, its competitive cost ensures excellent value for money, offering high-level features at an affordable price.

It uses an HMI display with touch control refers to a Human-Machine Interface (HMI) as the primary means of interacting with the system.

High pressure cell equipped with Premium+ quality electrodes: up to 12,000 hours of life.

Features low salt alarm indicator, flow switch detector, production control (0-100%) and RS485 (Modbus) control.

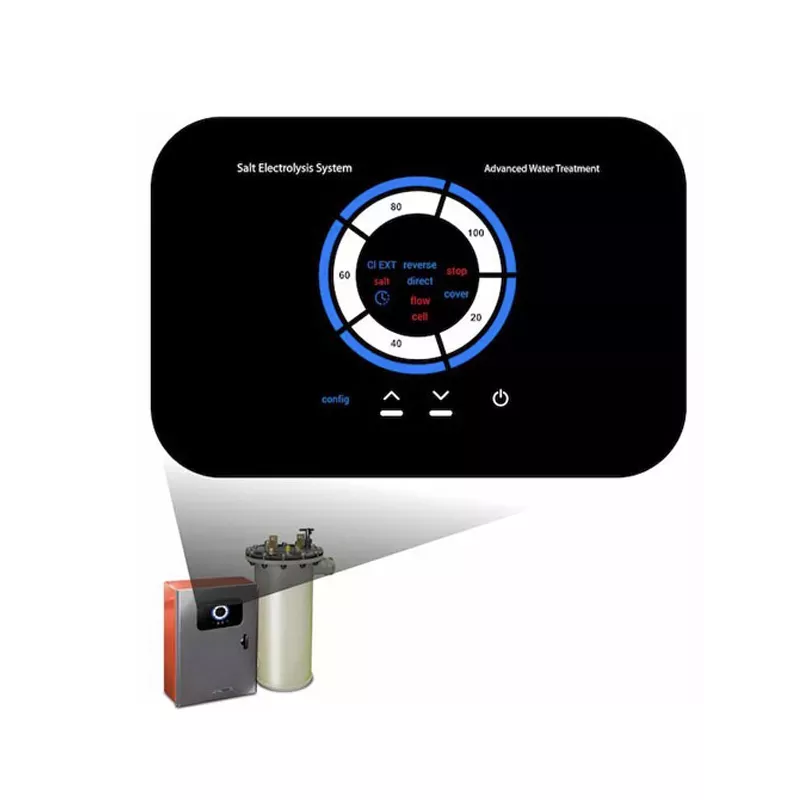

Touch control panel

1. External control led
2. Salt led
3. Time/temperature regulation led
4. Buttons to increase/decrease production
5. Production
6. Setpoint
7. Direct/reverse polarity
8. Cover
9. Flow alarm
10. Cell alarm

For further information and instructions for use, please refer to the manual (available for download in the "Documents" tab).

PH controller

- Measurement and control parameter: pH
- Control output: 1x0.5A ac max/230V + 1x15Vdc 8W + 1xpotential free
- Inductive sensor: flow detector
- Scale: 0.00 to 9.99 pH with an accuracy of 0.01 pH
- Two calibration modes:
Fast mode. One-point calibration
Standard Mode: Two-point calibration (pH4 and pH9)
- pH controller includes: pH probe with 3 meter cable and BNC connector, and calibration solutions (pH7 and pH9)

ORP controller

- Measurement and control parameter: ORP
- Control output: 1x0.5A ac max/230V + 1x15Vdc 8W + 1xpotential free
- Inductive sensor: flow detector
- Scale: 0 to 999 mV with an accuracy of 1 mV
- Automatic calibration by 470 mV solution
- The pH controller includes: ORP probe with 3-meter cable and BNC connector, and calibration solution (470 mV)
