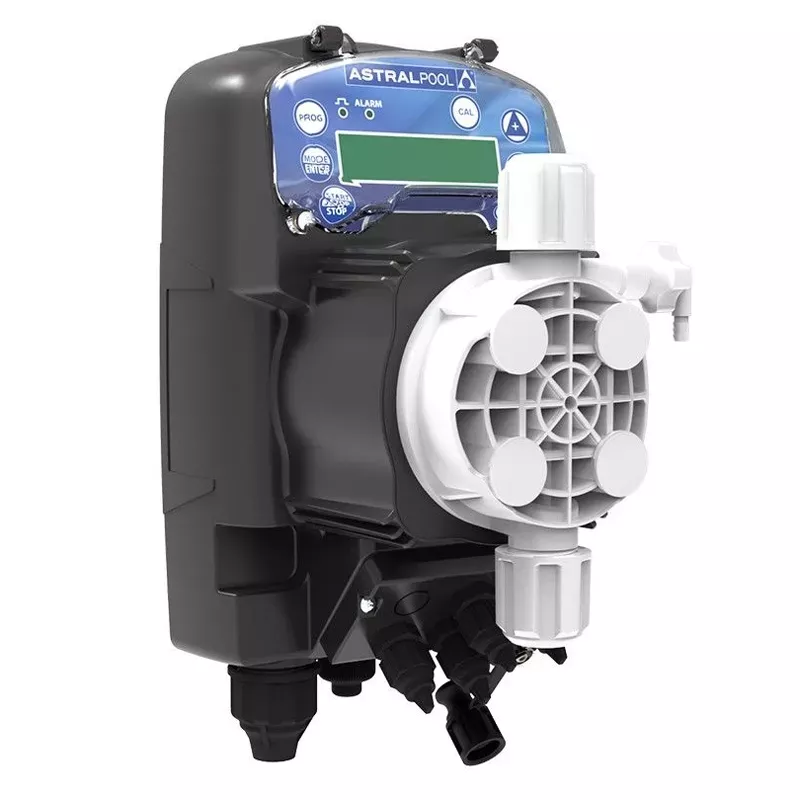

Dosing pump Astralpool Acqua Dos digital manual dosing pump Type D

Dosing pump Astralpool Acqua Dos digital manual dosing pump Type D

The Acqua Dos series digital metering pumps with constant flow rate can be manually adjusted via a keypad mounted on the front panel, which shows the dosed flow rate in pulses/minute on the display.

With only 3 sizes, this pump can cover a wide range of performances, offering a flow rate range from 4 to 110 l/h and a back pressure up to 16 bar.

The power supply is 100÷240 Vac - 50/60 Hz, so the pump itself can operate with different supply voltages. The pump head is made of PVDF, so it has a high chemical compatibility with various liquids. All Acqua Dos series are equipped with a manual priming pump for start-up.

TECHNICAL CHARACTERISTICS

- Flow rate: from 20 to 110 l/h
- Maximum pressure: 5 bar
- Power supply: 110-240 Vac
- Displacement rate: 160 strokes/minute
- Head: PVDF
- Diaphragm: PTFE
- Outer casing: Glass fiber reinforced PP
- Degree of protection IP65
- Manual priming valve
- Suction connection: 8/12
- Supply connection: 8/12
- Installation kit included with PVDF bottom filter and injection valve, PVC suction pipe and PE supply pipe
