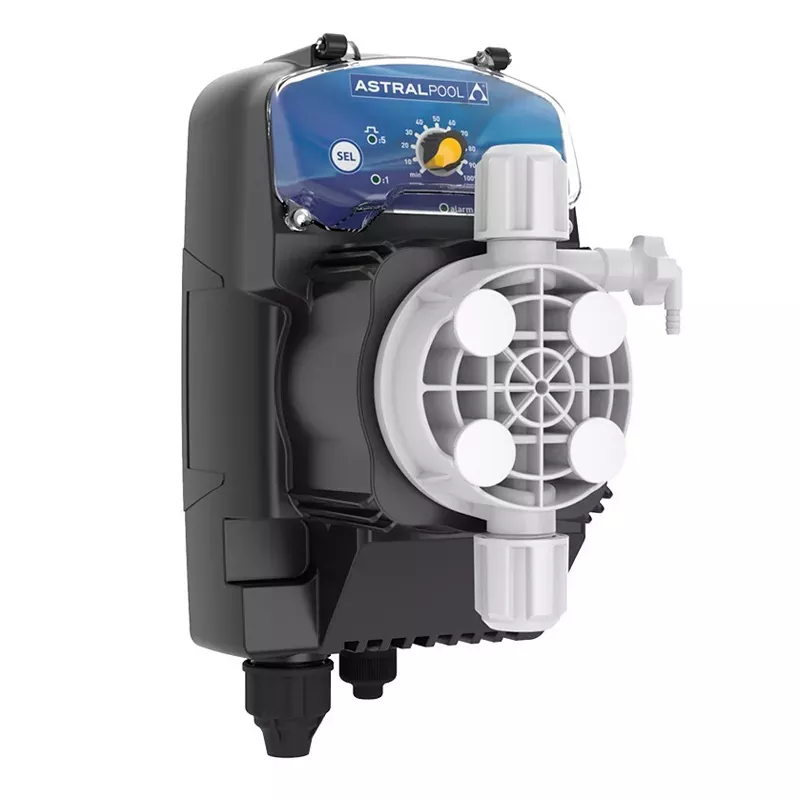

Dosing pump Astralpool Acqua Dos manual analogical dosing pump Type C

Dosing pump Astralpool Acqua Dos analog manual dosing pump Type C

The Acqua Dos series analog metering pumps with constant flow rate can be manually adjusted by means of a knob mounted on the front panel.

The flow rate has two frequency ranges:
- 0 to 20% of the maximum flow rate
- 0 to 100% of the maximum flow rate

With only 3 sizes, this pump can cover a wide range of performances, offering a flow rate range from 4 to 110 l/h and a back pressure of up to 16 bar.

The power supply is 100÷240 Vac - 50/60 Hz, so the pump itself can operate with different supply voltages. The pump head is made of PVDF, so it has a high chemical compatibility with various liquids. All Acqua Dos series are equipped with a manual priming pump for start-up.

TECHNICAL CHARACTERISTICS

- Flow rate: from 7 to 18 l/h
- Maximum pressure: 16 bar
- Power supply: 110-240 Vac
- Displacement rate: 300 strokes/minute
- Head: PVDF
- Diaphragm: PTFE
- Outer casing: Glass fiber reinforced PP
- Protection degree IP65
- Manual priming valve
- Suction connection: 4/6
- Supply connection: 4/6
- Installation kit included with PVDF bottom filter and injection valve, PVC suction pipe and PE supply pipe
