Automatic bottom cleaner Zodiac MX10
ref: 07LAHWS000075 ean13: 9317545277394 sku: WS000075

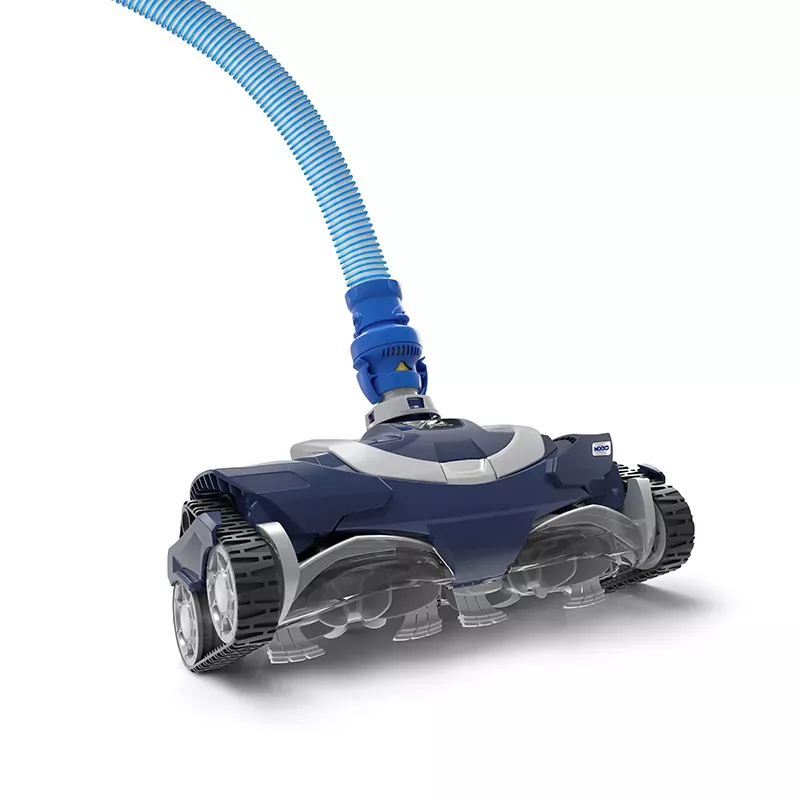

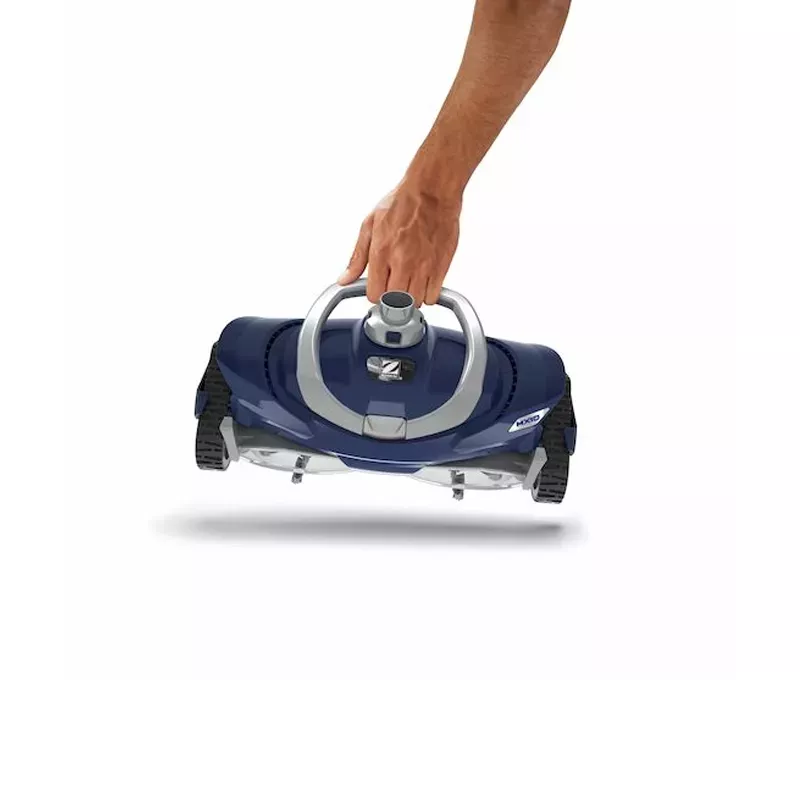

- Hydraulic pool cleaner Zodiac MX10.
- Code: WS000075.
- Turbo suction: two suction propellers with brushes and a powerful suction turbine.
- Inground pools up to 12 x 6 m.
- With X-Drive navigation system.

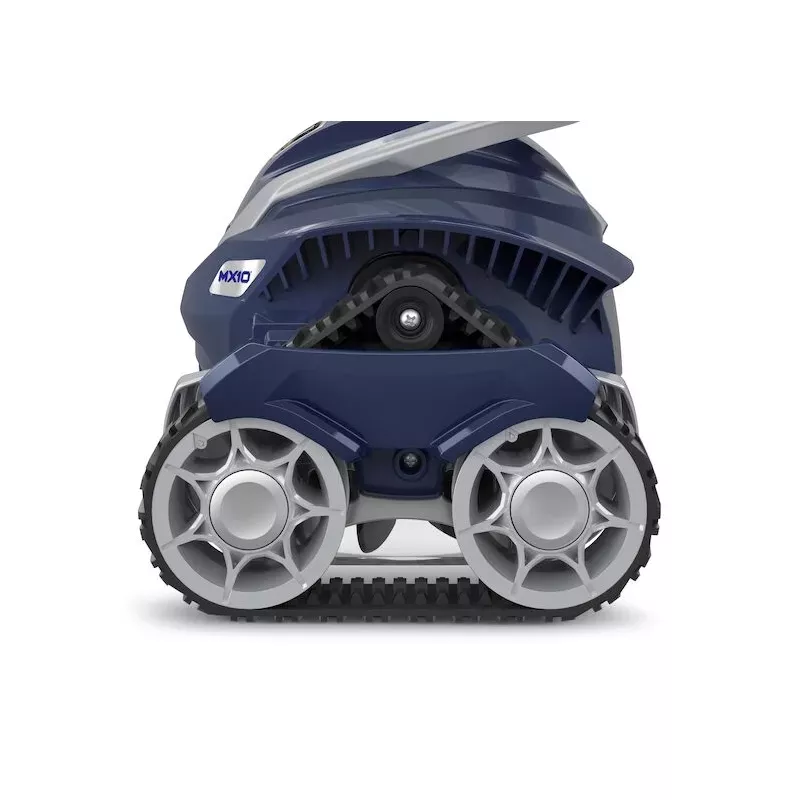

- Belt drive: perfect stability and grip.
- Includes 12 lengths of 1 meter Twist Lock hose.
- Minimum pool filtration pump power: 3/4 HP.
€379.00
Free shipping
Technical characteristics
What type of pools is the Cleaner suitable for? Zodiac MX10?
- Type of pool: in-ground pools up to 12 x 6 m.
- Shapes: rectangular, oval, round and free forms.
- Bottoms: flat, gentle slope, compound slope.
- Coatings: gresite, liner, polyester hull, reinforced PVC, painted concrete
Bottom cleaning equipment.Hydraulic equipment is not programmed in software to clean the walls, although it can clean them on some occasions if a series of conditions are met.
And don't miss the rest of ourpool cleaners Zodiac!
Advantages of Zodiac MX10
- X-Drive navigation system: cleans all areas of the pool.
- Strap sliding system for perfect stability and grip.

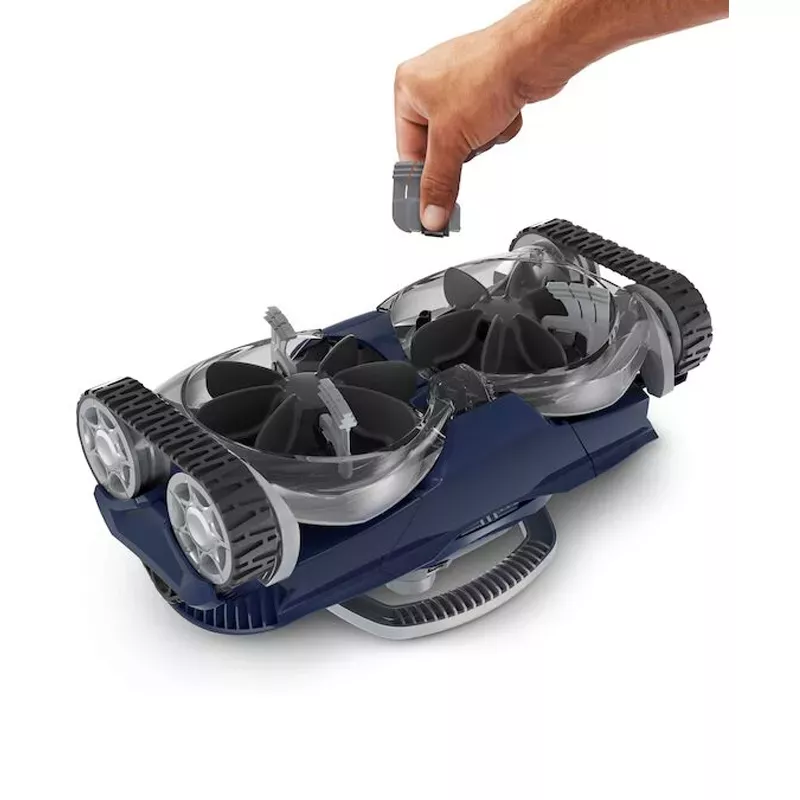

- Two suction propellerswith brushesAnd a powerful suction turbine.
- New Twist Lock hoses: secure connection without loss of suction.
- Simple and reliable.
Technical characteristics of the cleaner Zodiac MX10.
- Hose length: 12 sections of 1m.
- Dimensions of the cleaner (L x W x H): 41 x 19 x 22 cm.
- Packaging dimensions (L x W x H): 102 x 23 x 37 x 37 cm
- Weight of the cleaner without packaging: 3.4 kg
- Filtering surface / Filtration capacity: Swimming pool filtration circuit
- Cleaning coverage: 36 cm.
- Minimum filtration pump power requirement: 3/4 hp
- Travel speed: 8 m/min.
General information about the cleaner Zodiac MX9.
- Installation: By the user at the pool cleaner intake or skimmer.
- Power source: Pool filtration equipment.
- Technology: Suction hydraulics.

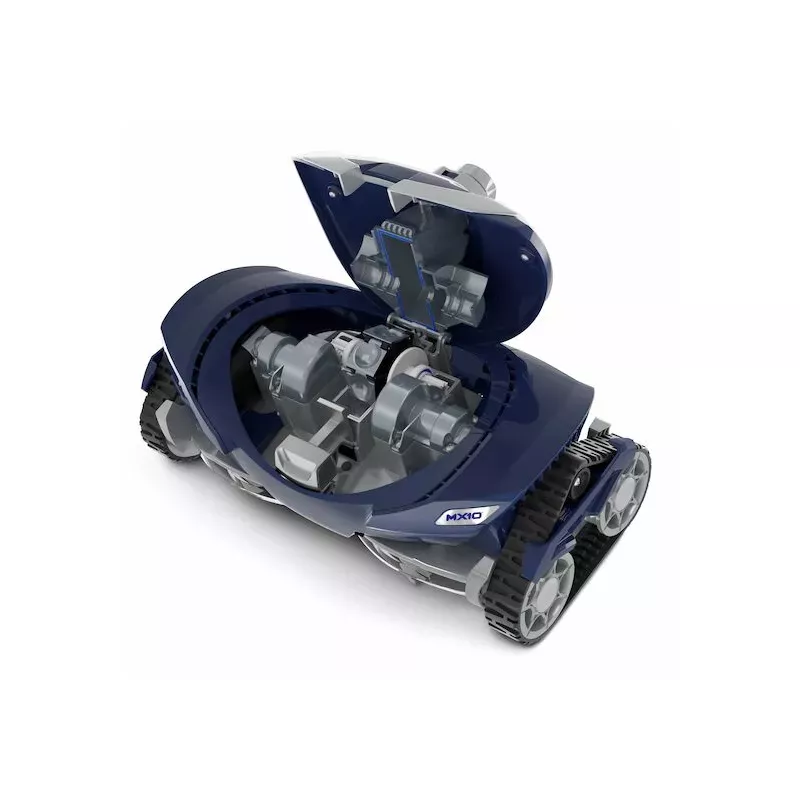

- Operating system: Suction turbine and 2 suction propellers.
- Cleaning cycle: 6 hours of filtration in 3 cycles of 2 hours is recommended.
- Type of vacuumed waste: Fine, medium and large.
- Possibility to bathe at the same time: Yes.
- Technology: X-Drive.
- Warranty: 2 years.
Accessories supplied:
- Twist Lock Tubes
- Automatic flow regulation valve.
- Flow meter.
 |  |  |  | |
| T3 | T5 DUO | MX8 | MX10 | |
| For pools up to | 9 x 5 meters | 12 x 6 meters | 12 x 6 meters | 12 x 6 meters |
| Cleaning area | Fund | Background and walls | Background and walls | Background and walls |
| Recommended cleaning cycle | 6h in 2h cycles | 6h in 2h cycles | 6h in 2h cycles | 6h in 2h cycles |
| Energy source | Pool filtration equipment | Pool filtration equipment | Pool filtration equipment | Pool filtration equipment |
| Minimum filtration pump power | 1/2 HP | 3/4 HP | 3/4 HP | 3/4 HP |
| Displacement | Random | Random | Random | Random |
| Operating system | DiaCyclone Diaphragm | DiaCyclone Diaphragm | Suction turbine and 2 suction propellers | Turbo suction: 2 suction propellers with brushes and a powerful suction turbine |
| Installation | Cleaner socket | Cleaner socket | Cleaner socket | Cleaner socket |
| Type of waste | Fine and medium | Fine and medium | Fine and medium | Fine and medium |
| Hose length | 10 sections of 1 meter | 12 sections of 1 meter | 12 sections of 1 meter | 12 sections of 1 meter |
| Weight | 1.2 kg | 1.4 kg | 3.2 kg | 3.7 kg |
| Cleaning coverage | 30 cm | 44 cm | 36 cm | 36 cm |
| Travel speed | 6.5 m/min | 6 m/min | 8 m/min | 8 m/min |
| Warranty | 3 years | 3 years | 3 years | 3 years |
