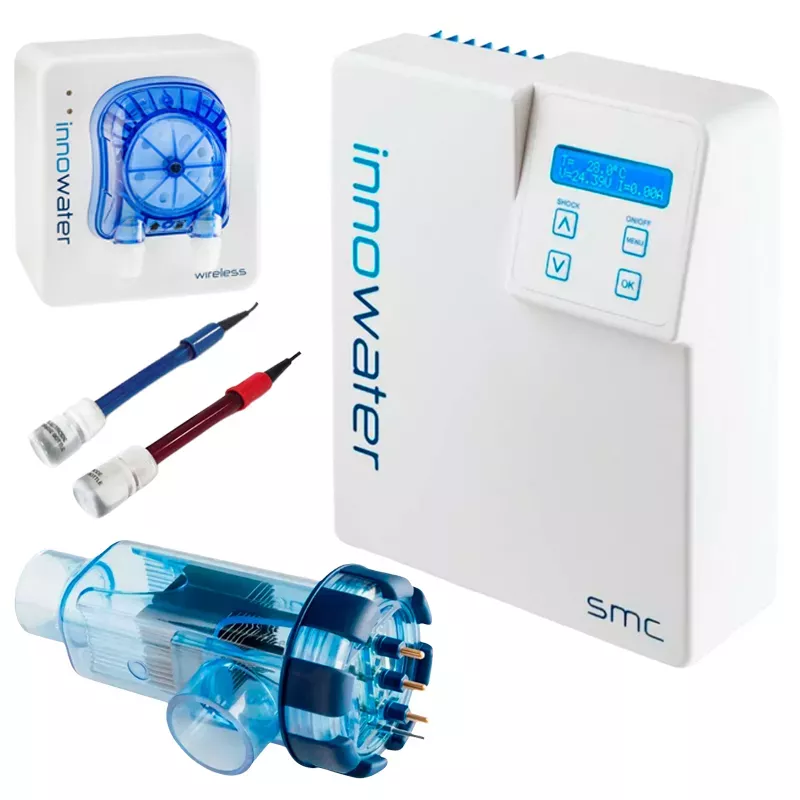

Salt chlorinator Innowater SMC 40 with pH/Redox and wireless controller

Salt chlorinator Innowater SMC with pH/Redox and wireless controller

Salt chlorination is a reliable, efficient and cost-effective method, especially adapted to the treatment of swimming pools. Through a process of electrolysis, chlorine (oxidizing agent) is generated naturally, avoiding the need to handle, transport and store chemical products. It is also a renewable chemical process, so it will only be necessary to add a certain amount of salt at the start-up of the pool and replenish the amount lost due to filter washings, rain, etc.

This chlorination method is highly suitable for pool water treatment, as it is an extremely simple and effective system. It offers numerous advantages over conventional treatments: the water obtained is of superior quality and healthier, reaching a characteristic crystallinity. In addition, the system operates constantly and automatically, eliminating the cost of treatment products.

Innowater manufactures compact, high-performance chlorinators using the highest quality components. Its product range adapts to all needs and types of installation.

Economical

80% savings in maintenance and 0 € in chemicals.
Easy installation.

Effective

More powerful disinfectant power than traditional chlorine.
Elimination of chloramines and organic residues.

Healthy

Does not generate by-products and is a natural antiseptic.
No chlorine odor and does not irritate eyes or skin.

Convenient

Automated production.
No handling or stored chemicals.

Sustainable

Renewable treatment.
Environmentally friendly.

Main features

- High performance sealed power supply
- Enclosed housing without forced ventilation
- LCD display with user-friendly menu system
- Easy disconnect cell connector in waterproof rubber
- Overload-proof electronic power control
- Low maintenance, compact bipolar cell
- Programmable polarity change
- Transparent electrode holder and glass for easy access and quick inspection
- Nutless quick cell electrical connection
- Interchangeable cell terminals molded with insulating material

In the picture on the right you can see an installation diagram of the salt chlorinator.

Compact, low-maintenance bipolar cell

- T-shaped cell for easy installation
- Transparent polycarbonate vessel.
- Improved hydrodynamics reduces scale build-up
- Anti-corrosion terminals over-injected with polyethylene
- Interchangeable terminals molded with insulating material
- Transparent glass for easy inspection
- Electrodes offset to promote water flow
- Cell life: up to 14,000 hours
- Double sealing of the cell
- Bi-material thread improves grip

Controller Innowater pH Wireless C1201

- Instrument for pH measurement and dosing
- Electronics controlled by salt chlorinator
- Power supply: 220 VAC - 50 Hz
- Maximum dosing pressure: 1.5 bar (for 3 l/h)
- IP65 enclosure
- Dimensions: 118 x 130 x 77 mm
- Includes:
- PH electrode
- ORP electrode
- Calibration solutions
- Installation kit (suction filter, injection fitting, electrode holder and tubing)

Warranty

- 3 years warranty on labor and parts
- Warranty not valid in case of failures not attributable to the product (shock, accident, misuse, incorrect connection)
- The product that is tampered with will lose the warranty
- The warranty does not cover travel
- The customer will be responsible for transportation to our facilities. If the equipment is under warranty, Innowater will return it free of charge to the customer's home
