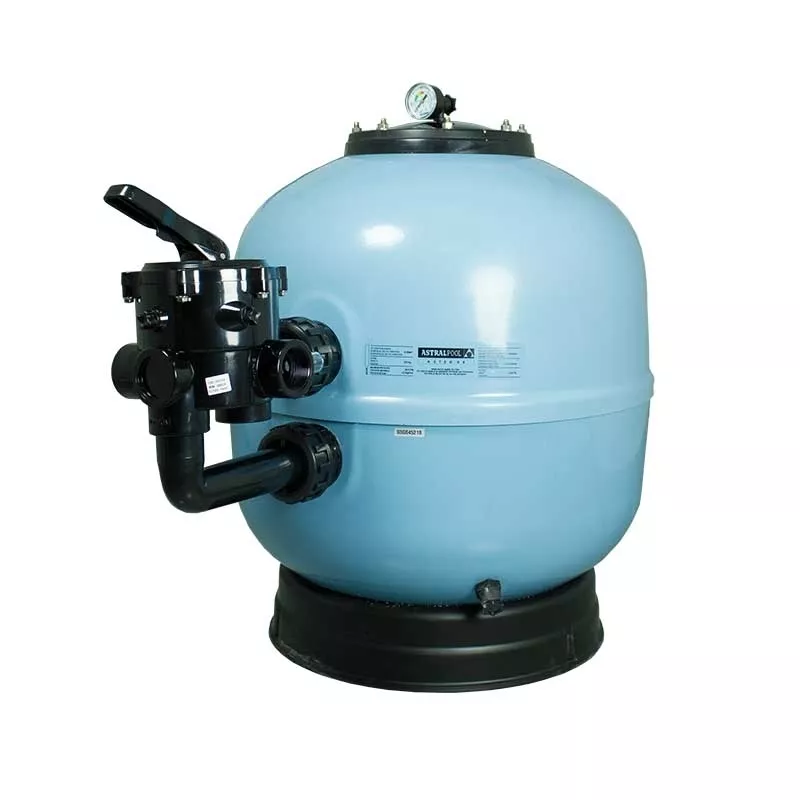

Swimming pool filter Astralpool Ice diameter 750
ref: 06FI20613FT108A sku: 73182AN
- Ice pool filter.
- Manufacturer: Astralpool.
- Diameter 750 mm.
- Made of reinforced polyester.

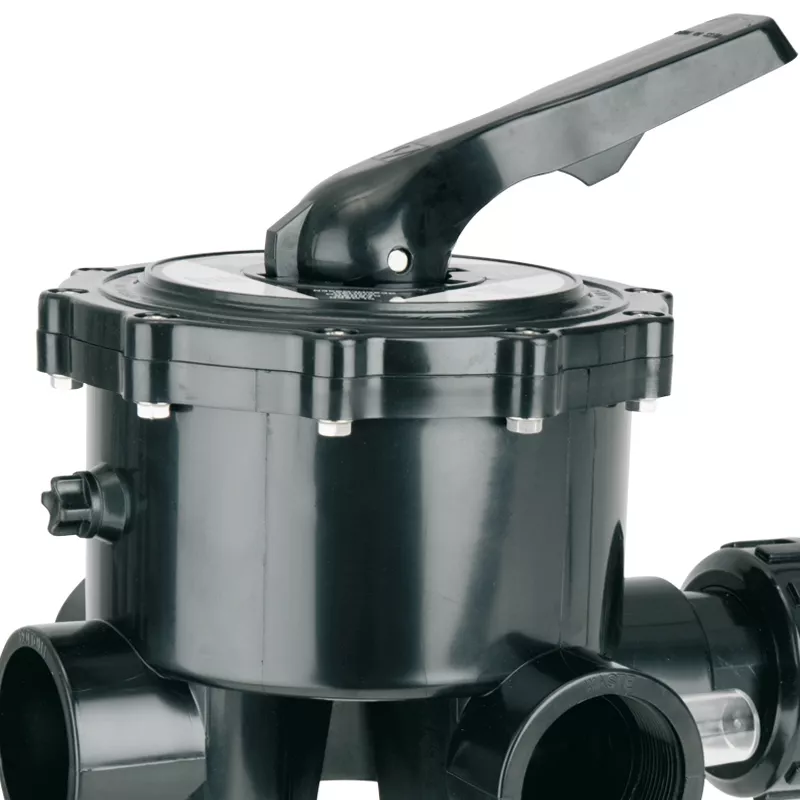

- INCLUDES 6-WAY SELECTOR VALVE OF 2".
- Pressure gauge at the top.
- Cover with screws.
€695.00
Free shipping
Technical characteristics
CHARACTERISTICS ICE FILTER DIAMETER 750
- Recommended for pools up to 120 m3.
- Equipped with pressure gauge and air-water purge.
- Screw lid, with a new design: lighter, more resistant and more watertight.

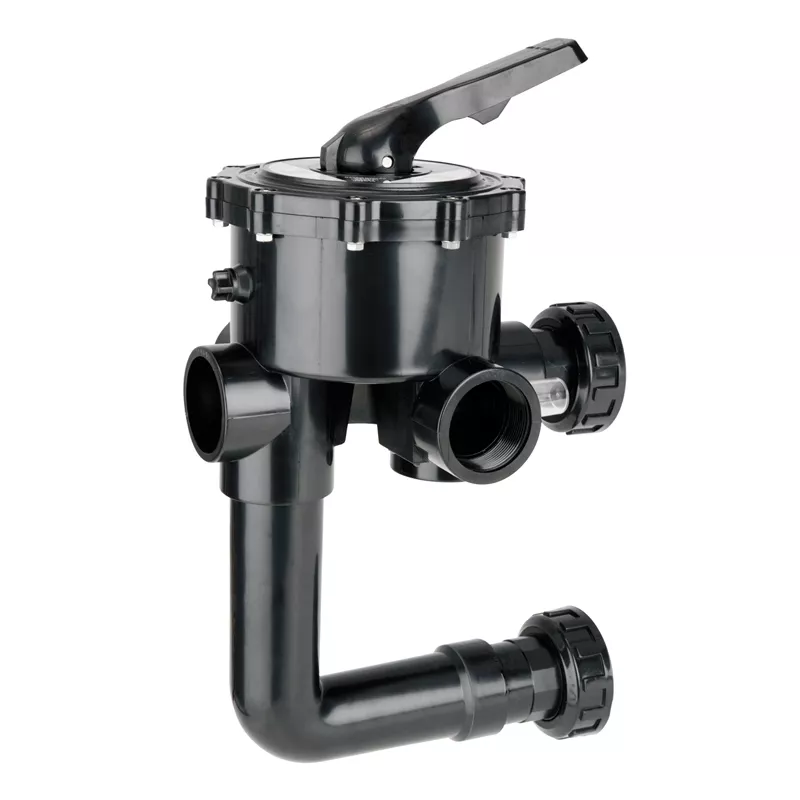

- Includes 6-way selector valve 1" 1/2.
Operations: filtering, washing, rinsing, recirculation, emptying and closing. - Assembled with manifold and diffuser in unalterable plastic material.
- Filter made of reinforced polyester and fiberglass.
- Excellent satin red finish.
- Maximum flow rate: 22 m3/h.
- Filtration speed: 50 m3/h.
- Maximum working pressure: 2,5 kg/cm2.
- Sand load: 300 kg.
- Glass load: 270 kg.
 | | | | |
| ICE D.500 | ICE D600 | ICE D.650 | ICE D.750 | |
| Diameter (mm) | 500 | 600 | 650 | 750 |
| H (mm) | 760 | 805 | 890 | 940 |
| M (mm) | 415 | 455 | 505 | 555 |
| N (mm) | 290 | 330 | 350 | 325 |
| Connections | 1'' 1/2 | 1" 1/2 | 1'' 1/2 | 2" |
| Flow rate (m3/h) | 9.5 | 15 | 18 | 22 |
| Pool volume (m3) | 72 | 112 | 138 | 168 |
| Sand load (kg) | 85 | 125 | 175 | 300 |
| Service pressure (bar) | 2.5 | 2,5 | 2.5 | 2,5 |
| Net weight (kg) | 16 | 21 | 30 | 38 |
| WARRANTY | 2 years | 2 years | 2 years | 2 years |
| Selector valve | Yes | Yes | No | Yes |
Data Sheet
- Recommended pool size
- 80-120 m3
- Filter diameter
- 750 mm
- For pumps
- 1.5 HP
- Valve
- Side 2
- Sand load (kg)
- 250 - 300 kg
- Material
- Laminated polyester
- Type of filtration
- Sand
