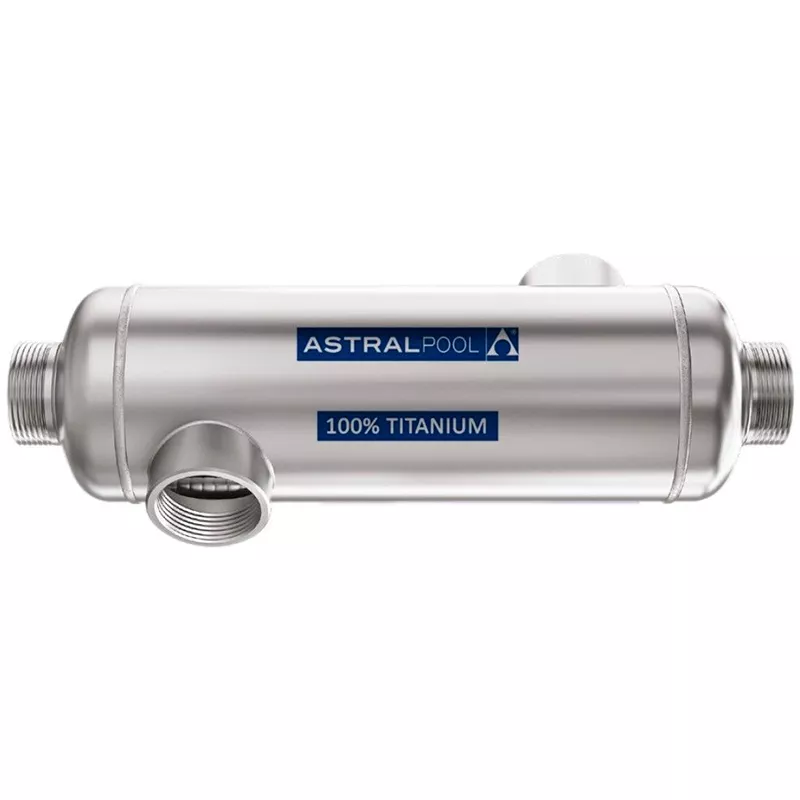

Water-to-Water Heat Exchanger Astralpool Waterheat EVO TIT-140 KW
ref: 08CA65540 ean13: 8420382785128 sku: 71611
- Waterheat EVO water-water heat exchanger.
- Power: 140 KW.
- Manufacturer: Astralpool.
- Code: 71611.
- Made of Titanium.
- Ideal for swimming pools and spas.
€1,819.01
Free shipping
Technical characteristics
Heat exchanger Astralpool Waterheat EVO
Heat exchanger Astralpool Waterheat EVO 140 kW
Heat exchangers for heating water in swimming pools and spas, thanks to the heat exchange between a primary circuit (hot source) and a secondary circuit (cold source to be heated).
Technical characteristics of the heat exchanger Astralpool Waterheat EVO
- Made of titanium.
- Titanium body
- Power: 140 KW
- Heater pressure drop: 0,040 bar.
- Pool pressure drop: 0,316 bar.
>>
 | | | | | | |
| Waterheat EVO 20 | Waterheat EVO 40 | Waterheat EVO 60 | Waterheat EVO 105 | Waterheat EVO 140 | Waterheat EVO 210 | |
| KW | 20 | 40 | 60 | 105 | 140 | 210 |
| Heater m3/h | 1,6 | 2,7 | 3,1 | 6,6 | 7,0 | 10,0 |
| Heater pressure drop (bar) | 0,006 | 0,024 | 0,040 | 0,03 | 0,040 | 0,122 |
| Pool volume m3/h | 11 | 15 | 20 | 23 | 20 | 25 |
| Pool pressure drop (bar) | 0,119 | 0,192 | 0,418 | 0,293 | 0,316 | 0,633 |
